Our Twist & lock Sensor Electrode are light-weight and durable, suitable for a wide range of applications. The EID Twist & lock sensor design features our reliable 1/4 turn locking feature for quick connect/disconnect from your process. Whether you are measuring pH, ORP or conductivity - this sensor will provide you with re-producible and reliable results. To mount, insert the sensor into the EID 3/4" or 1" NPT Twist & lock adapter and rotate 1/4" turn. The adapter's housing is constructed of 316 Stainless Steel and an optional safety ring provides the extra peace of mind. The sensor also features redundant O-rings to prevent process leakage. You can rely on your EID electrode to deliver dependable measurements now and well into the future. Use it with your PROBER-PH8 Meter/Logger for the highest accuracy and maximum performance.



ELECTRODER - Twist & Lock Electrode (TLE)

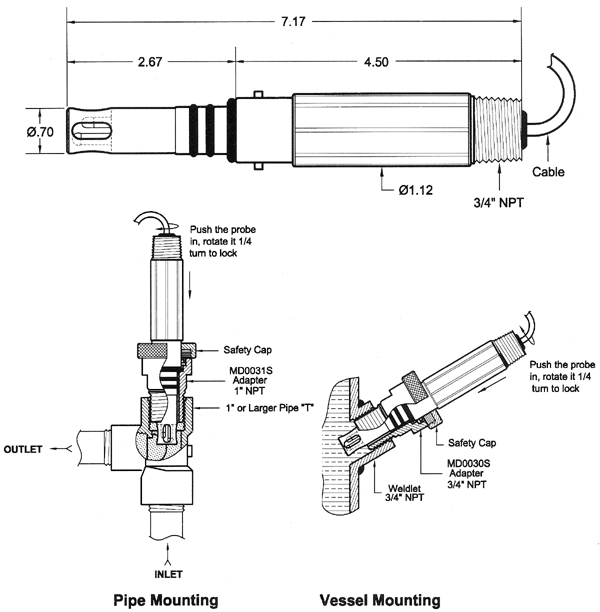

Probe Dimensions & Recommended Mounting

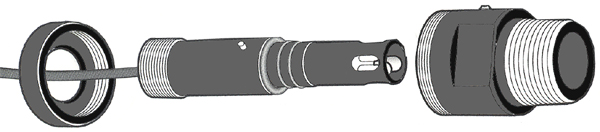

ELECTRODER-TLE electrode (Probe) assembly drawing




* When using the electrode in a industrial environment, use our pH/ORP unity gain amplifier AMPER-PH1



* Our ORP electrode are aimed at the researcher in the laboratory, scientists in the plant or out in the field.



* EID Corp. offers many types and styles of pH, ORP electrodes and conductivity cells. We will customize them for you. Let us know the style you are looking for and we will produce to your specifications. Contact EID Sales team for more details. Join the thousands who use them every day worldwide.


Many of you asked us -- what are the purchase volume requirements for custom labeling?

Custom labeling requires minimum purchasing quantities of 50 units




ELECTRICAL SPECIFICATIONS

Nominal Impedance:

>100 Mega Ohm

Temperature Range:

0-100oC,  (273.15-373.15oK)

Junction

Single and/or Double

Max Pressure 100PSI
Connection Via EID Twist & Lock 3/4" or 1" adapters
MATERIALS

Body Housing

Kynar, CPVC

ORP Sensing Element

Platinum band with High purity

Cable

10' CE approved with tinned lead

Description and SKU#

Price


ELECTRODER-TLE pH electrode

EID-I-TLE-KYNR for pH combination, Kynar housing body, 0-14 ph range, Dome bulb, 100 Ohm RDT and ground. 10' CE approve cable, spade lugs or tinned lead.

EID-I-TLE-PPVC for pH combination, CPVC housing body, 0-14 ph range, Dome bulb, 100 Ohm RDT and ground.10' CE approve cable, spade lugs or tinned lead.



CALL







CALL



ELECTRODER-TLE ORP electrode

EID-I-TLE-KYNR for ORP, Kynar housing band sensor, 100 Ohm RDT and ground. 10' CE approve cable, spade lugs or tinned lead.

EID-I-TLE-RPVC for ORP, CPVC housing body, band sensor, 100 Ohm RDT and ground.10' CE approve cable, spade lugs or tinned lead.



CALL





CALL

BNC (RG-58) Cable extension cord

EID-C-BNC-58BB-3 for 3 ft.

EID-C-BNC-58BB-6 for 6 ft.

EID-C-BNC-58BB-12 for 12 ft.



6.00

7.00

8.00

Double Female Adapter

EID-A-BNC-305 (UG-914/U)





1.60

  •
