Our ORP and/or pH In-line Submersible Combination Electrode are light-weight and durable, suitable for a wide range of applications. Standard 3/4 inch NPT threads on the front and rear of the housing allows for greater process mounting configurations on the EID model ELECTRODER-IIS electrode. It's durable molded Kynar body resists chemical attack and the Polaris porous junction and electrolyte ensures reliable reference performance. Solution ground and integral temperature compensation are standard, and preamp models are available. You can rely on your EID  electrode to deliver dependable measurements now and well into the future. Use it with your PROBER-PH8 Meter/Logger for the highest accuracy and maximum performance.





ELECTRODER - In-line Submersible Electrode (IIS)

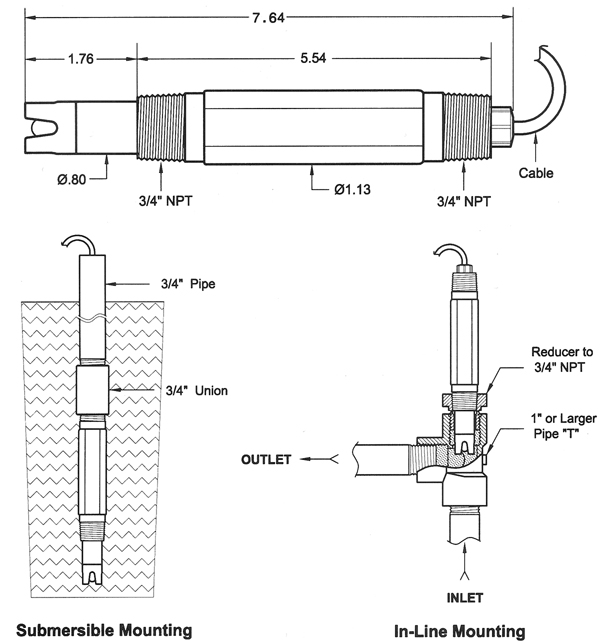

Probe Dimensions & Recommended Mounting

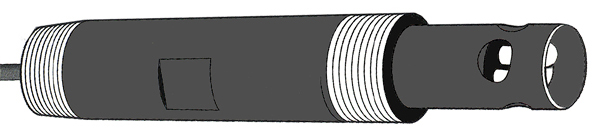

ELECTRODER-IIS Probe drawing


* The electrode is furnished standard with a 3-foot low noise coaxial (RG-174) cable and BNC connector. Cable extension lengths up to 12 feet are available. When longer distance requires, or when using the electrode in a industrial environment, use our pH/ORP unity gain amplifier AMPER-PH1



* The electrode is aimed at the researcher in the laboratory, scientists in the plant or out in the field.



* EID Corp. offers many types and styles of electrodes. Various temperature compensation element, cable lengths and connectors are available. We will customize them for you. Let us know the style you are looking for and we will produce to your specifications. Contact EID Sales team for more details. Join the thousands who use them every day worldwide.


Many of you asked us -- what are the purchase volume requirements for custom labeling?

Custom labeling requires minimum purchasing quantities of 50 units




ELECTRICAL SPECIFICATIONS

Nominal Impedance:

>100 Mega Ohm

Temperature Range:

0-100oC,  (273.15-373.15oK)

Junction

Single and/or Double

Max Pressure 100PSI
Connection 3/4" NTP Standard
MATERIALS

Body Housing

Polypropylene, CPVC

Cable

10' CE approved with tinned lead

Description and SKU#

Price


ELECTRODER-IIS pH electrode

EID-I-IIS-PPLY for pH combination, Polypropylene housing body, 0-14 ph range, Dome bulb, 100 Ohm RDT and ground. 10' CE approve cable, spade lugs or tinned lead.

EID-I-IIS-PPVC for pH combination, CPVC housing body, 0-14 ph range, Dome bulb, 100 Ohm RDT and ground.10' CE approve cable, spade lugs or tinned lead.



CALL







CALL



ELECTRODER-IIS ORP electrode

EID-I-IIS-RPLY for ORP, Polypropylene housing band sensor, 100 Ohm RDT and ground. 10' CE approve cable, spade lugs or tinned lead.

EID-I-IIS-RPVC for ORP, CPVC housing body, band sensor, 100 Ohm RDT and ground.10' CE approve cable, spade lugs or tinned lead.



CALL





CALL



BNC (RG-58) Cable extension cord

EID-C-BNC-58BB-3 for 3 ft.

EID-C-BNC-58BB-6 for 6 ft.

EID-C-BNC-58BB-12 for 12 ft.



6.00

7.00

8.00

Double Female Adapter

EID-A-BNC-305 (UG-914/U)





1.60

  •
