Soldering Pots (SP)



All pots are in stock. Choose from variety of high grade solder pots. We can custom them to fit your manufacturing needs. Good news for the hundreds who call about ETI soldering pots." Yes, we carry the flagship solder pots by Esico-Triton Inc (ETI).



PD series of digitally-controlled Solder Pots.


Keeping with its tradition of product innovation, ETI now offers a new line of digitally controlled precision solder pots. With temperature such a critical factor in quality soldering, this new series of solder pots is designed to provide the industry's highest level of temperature control to ensure unmatched soldering accuracy and reliability.



PD33



The PD33 offers a deep crucible, along with an optional removable dross collection cup. This pot is an excellent choice when working on small printed circuit boards.




Specifications: Wattage 350W, Inside Damnations 3" * 3", Depth 1.5", Maximum temperature 850F, Solder Cap 4 Lbs.



PD24



Perfect to use when soldering small parts, magnet wire, wire leads and more. The PD24 is ideal for handling delicate projects that require high temperature and accuracy.





Specifications: Wattage 1100W, Inside Damnations 2" Diameter, Depth 1.5", Maximum temperature 1100F, Solder Cap 1.25 Lbs.



PD74



The PD74 offers a large solder capacity and makes this pot the recommended choice when soldering long leads or for other applications requiring a deep pot.





Specifications: Wattage 1000W, Inside Damnations 3.18" Diameter, Depth 4.25", Maximum temperature 900F, Solder Cap 9.5 Lbs.



Production proven solder pots for tinning, stripping, dip soldering, and other applications.


ETI electric solder pots are made in a wide range of models. Whatever the requirements- tinning, stripping, or dip soldering, these solder pots will do the job efficiently. They are designed and engineered for today's continuous production requirements. The cast iron crucibles are designed for operator convenience, comfort, and high volume production. ETI solder pots are available in 120 and 240 volts. Special wattages can be supplied. All solder pots are supplied with a three conductor cord-set.

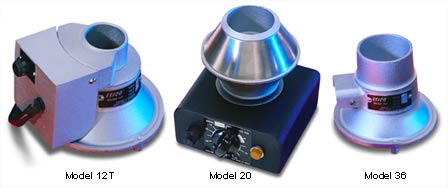

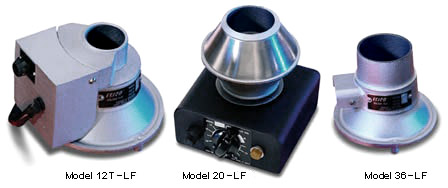

Model 12, 20, and 36 Pots: Pots you'll want to use for dip soldering of individual small pots, wire leads, etc.

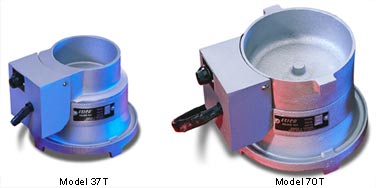

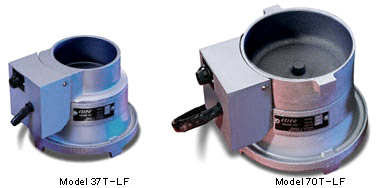

Model 37 and 70 Pots: Used in dip soldering and tinning of larger parts or when more heat may be a requirement.

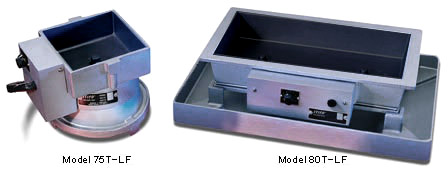

Model 75 and 80 Pots: Solder pots used extensively for short run soldering and de-soldering of through hole printed circuit boards.



OUR BEST SELLERS







Model 71T Pot: Our large solder capacity, deep well pot for long parts. Equipped with thermostat temperature control and a dross sand tray.







Safety:


See operation manual.



Basic think you need to know on melting pot:



Warning: Normal use of these products is likely to expose the user to lead, a chemical known in the State of California to cause cancer and birth defects (or other reproductive harm), or exposure to other proposition 65 chemicals.



This entire device becomes HOT in use. DO NOT TOUCH the metal surfaces or contents. ALWAYS wear eye protection. Guard against accidental spills or splatter. MOLTEN SOLDER can cause serious bums.



Notice: These products are designed for industrial use, by experienced operators, under proper supervision. Never permit an inexperienced person unfamiliar with heated solder pots and the characteristics of molten solder to use these device. Provide WARNING notice of hot pot in the area of use.



General  instructions:

  • The solder pots are designed to be used with soft alloy. Do not attempt to use these pots for other purposes.

  • When first plugging the unit in to a proper electrical outlet, have the solder to be melted present in the pot. Do not permit an empty pot to fully heat; this will damage the unit.  See picture below.

  • Keep the solder crucible full during use, by introducing additional material as it is consumed in the production process.

  • Occasionally remove accumulated oxides from inner walls and bottom of pot.

  • When solder becomes 'sluggish" due to contamination by other metals, replace the solder.

  • With thermostatically controlled pots, develop the desired temperature during production cycles by checking with a thermometer or pyrometer. Record this setting for future reference.

  • The presence of moisture can cause molten solder to 'explode" and splatter. Keep workplace and work clean and dry.

  • Never attempt to introduce a flux-core solder in to the pot.

  • Use a sand tray or insulation under the pot. Anchor pot to work surface.

  • Never operate the pot above rated voltage.

  • Disconnect the pot when not in use.

When first plugging the unit in to a proper electrical outlet, have the solder to be melted present in the pot. Do not permit an empty pot to fully heat; this will damage the unit.  See picture above.



Minimum order:



$300



Description and SKU#

Price

Soldering Pots



EID-ETI-SP-12       Model 12, 200W

EID-ETI-SP-12C     Model 12C, 200W

EID-ETI-SP-12T     Model 12T, 250W

EID-ETI-SP-20       Model 20, 250W

EID-ETI-SP-36       Model 36, 250W

EID-ETI-SP-36C     Model 36C, 250W

EID-ETI-SP-36T     Model 36T, 650W

EID-ETI-SP-37T     Model 37, 650W

EID-ETI-SP-37C     Model 37C, 650W

EID-ETI-SP-37T     Model 37T, 650W

EID-ETI-SP-70       Model 70, 650W

EID-ETI-SP-70T     Model 70T, 650W

EID-ETI-SP-71T     Model 71T, 1000W

EID-ETI-SP-75       Model 75, 650W

EID-ETI-SP-75T     Model 75T, 650W

EID-ETI-SP-80       Model 80T, 1200W

EID-ETI-SP-PD24    Model PD24, 250W

EID-ETI-SP-PD33    Model PD33, 350W

EID-ETI-SP-PD74    Model PD74, 1000W





99.95

110.63

182.33

260.00

105.00

125.98

185.00

135.00

164.45

240.00

148.00

240.00

280.00

150.00

240.00

580.00

833.42

851.45

1074.05

  •
