RS232 to I2C Single Temperature Sensor Kit is an Electronics board that allows you to connect Dallas DS1621, NSC LM75 etc. temperature sensor to your Personal Computer (PC) Communication Port (COMM. PORT).
No need for external Power supply!
This unique kit design provides you with the ability to mount one temperature sensor directly on the board, so you can monitor it. This kit is ideal for computer server room for both temperature monitoring and logging.
Mount the temperature IC on the bottom side (soldering side). See picture below surface mount (SMT) method. Or, we will mount it for you pre-shipment.
Please note: We sell pre-assembled sensors with 6 ft. RS232 wire and connector.
Soldering side sensor location on the board (SMT), as shown above (IC pin 1 mark in white color)
Fully assembled kit, as shown above
Wires locations, between the EID-RS232 (DB9 pins 8,7,4,5) to the kit (Components side) see above.
Kit Includes:

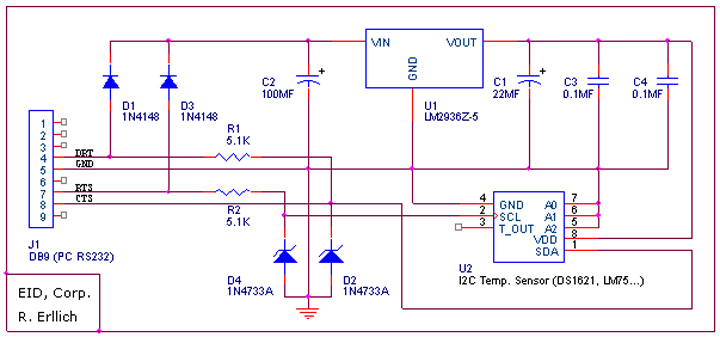

Schematic:
|
||
|
Description and SKU# |
Price |
Picture |
|
RS232 to I2C 2 Temp Sensors Kit EID-K-RS2-32-I2CTS-ASM Fully assembled EID-K-RS2-32-I2CTS-KIT Kit with RS232 6' Cable EID-K-RS2-32-I2CTS-PCB PCB Only EID-K-RS2-32-I2CT-SFT Pro-Software EID-K-RS2-32-I2C6S-CBL 6' RS232 extra cable and 9 pins connector |
57.24 45.00
15.39 29.10 10.00 |
|
|
Serial Port Complete (Second Edition) by J. Alexson EID-K-BOOK-SERIAL-001 Regular price EID-K-BOOK-SERIAL-0KC w/ kit purchase
NEW! We carry technical books... LEARN & SAVE!
This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!
|
39.95 27.33 |
|
|
|
||
