Industrial variable speed fractional horse power motor control module is an Original Manufacturing Engineering (OEM) industrial and commercial rated high performance, high efficiency Direct current (DC) speed control.

Shown above EID-PIVOT-PX5, Industrial Variable speed PM DC Motor Control Basic Board with 7 industrial standards 90 degrees (.187) high current Quick-Fit terminals clearly marked (Ground, 120V/60HZ power line, Om/Off Switch, Motor Armatures) and Minimum Maximum speed adjustments via multi-turn trimmers. Also shown Main POT and Bonding ground wire.



The PIVOT P5X drive is a reliable and cost-effective solution for controlling your permanent magnet or shunt-wound DC motors in variable-speed applications. It uses SCR's to provide full-wave rectification of the AC line input. This dual voltage drive operates using 110VAC/115VAC/120VAC, 50/60Hz, to operate 90VDC SCR brush-type Fractional HP (FHP) motors from 1/50 to 1/2 HP.



The DC Variable Speed Motor Control is a feature rich electronic interface board module designed to control 90V DC permanent magnet (PM) or Shunt-Wound (SHWD) motor locally via potentiometer and/or switch. The output average voltage is a linear function of the potentiometer rotation. If used properly, it will eliminate the need for expensive boards and instruments, which would otherwise be required to carry out the same control tasks.



Depending on model, the control can drive a 90V DC PM motor at verity of Fractional Horse Power (FHP), while powered by standard 120VAC/60HZ. Therefore, it can be powered by US standard power source. It provides smooth control operation with high efficiency in a compact form.



The EID-PIVOT-PX5 driver used in applications require constant torque throughout the application with good speed regulation such as conveyors, extruders, winders, printing presses, food process equipment and metering pumps controlled by 90VDC Permanent Magnet (PM) Fractional Horse Power Motor.



The board offers the features needed for professional high current DC motor control. The board also include built-in on board protection fuse, and transient and surge suppression.



Mounting is easy via four 0.156" mounting holes using 6-32 screws and wire (optional) via convenient conventional industrial standards 90 degrees (.187) high current Quick-Fit terminals.





Shown above EID-PIVOT-PX5, Industrial PM DC Variable speed Motor Control Basic Board with 7 industrial standards 90 degrees (.187) high current Quick-Fit terminals clearly marked (Ground, 120V/60HZ power line, Om/Off Switch, Motor Armatures) and Minimum Maximum speed adjustments via multi-turn trimmers.





Shown above PIVOT-PX5 basic connections illustration






Front Panel

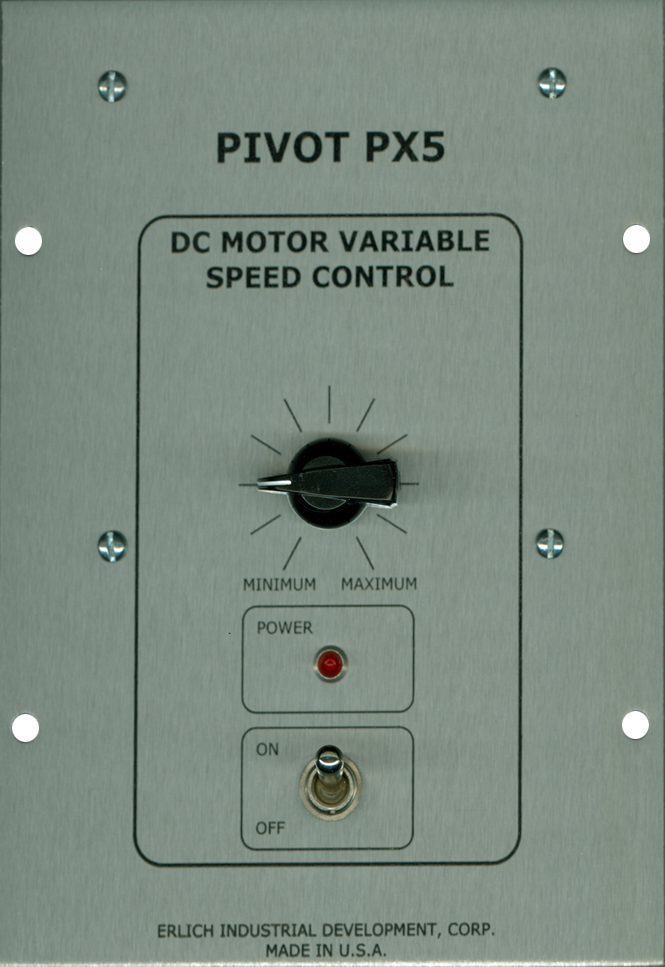

Shown above EID-PIVOT-PX5, Industrial PM DC Variable speed Motor Control panel module with ON/OFF switch, speed adjustment POT/Knob and Power indicators



Front Panel Enclosure Construction

Finish (model depended)

Formed from 16 gauge steel or aluminum.

4 through holes for enclosure mounting.

  • Steel-panel finished in powder coating industrial ANSI 61 gray.

  • Aluminum panel finished in clear anodize.

  • Marking- silk screen marking black.



Panel (only) Part number

Overall Dimensions (inches)

Steel

Aluminum

EID-PIVOT-P5X-PNL-ST

EID-PIVOT-P5X-PNL-AL

8

6

0.09



Shown above EID-PIVOT-PX5, Industrial Variable speed PM DC Motor Control panel (back side) module with speed adjustment POT 4 mounting standoff and 6-32 screws options.




Enclosure



Shown above EID-PIVOT-PX5's basic general purpose indoor commercial use enclosure (NEMA-1) with two mounted optional black nylon, liquid-tight cord-grip

Enclosure P# EID-PIVOT-CSKO864 and Cord-grip P# EID-1427CG13



Enclosure Standards

Enclosure Construction

Finish

UL-50 Type 1

CSA Type 1

Complies with

  • NEMA Type 1

  • IEC 60529, IP29

Formed and spot welded from 16 gauge steel.

Screws for both, panel cover (4) and grounding (1).

Easily removed knockouts on all 4 sides.

Through holes in back for wall mounting.

Grounding location embossed in body for driver and motor grounding.

Enclosure finished in powder coating industrial ANSI 61 gray.



Enclosure Part number

Overall Dimensions (inches)

EID-PIVOT-CS863

8

6

3

EID-PIVOT-CSKO864

8

6

4






PIVOT-P5X Industrial applications:



●      General Industrial PM Brush Motor drive

●      Machinery PM Brush Motor drive

●      Packaging Equipment PM Brush Motor drive

●      Material Handling PM Brush Motor drive

●      Laboratory Equipment

●      Office Machinery

●      Machine Tool Equipment

●      Process Control Instruments

●      Automatic Door and Gate Operators

●      A Variety of Pump Applications

●      Food Processing Equipment

●      Chemical Dispensing

●      Conveyors

●      Winders and Spooling

●      printing presses

●      Laboratory

●      Pump

●      Fan/Blower



Standard Features:



●      Provides motor with smooth variable speed

●      Maintains variable speed

●      Adjustable maximum (MAX) speed, minimum (MIN) speed,

●      High efficiency circuitry.

●      On board protection fuse.

●      On board Metal Oxide Varistor (MOV) Transient Protection

●      Conveniently front mounted high current Quick-Fit terminals.

●      Conveniently front mounted LED or Neon power on indicator.

●      Large front mounted auxiliary heat-sinks for heat distribution for 1/8 to 1/5 HP models.



Control Board Dimensions:



Board width, length, height: 4.275" * 4.100" * 1.700".



Controller Enclosure Dimensions (option):



Board width, length, height: 9" * 6" * 5" (include switch toggle and bottom mounted wire-glens).



Control Board Mouthing Dimensions:



Four (4) mounting holes (.156" Dia.) 3.975" * 3.775" on center.



Note: Use four (4) 6-32 screws and stand-offs to mount the board to the optional panel.



Caution: Do not mount controller where ambient temperature is outside the range of -10 C (15 F) to 45 (115 F). -20C to +50C (-4F to 122F).






Specifications:



Load current (continuous)

5 Amps DC

Motor Speed adjustment

Potentiometer

Motor Speed range

25 : 1

Acceleration

Non-adjustable - half second

Deceleration

Non-adjustable - half second

Maximum speed

Adjustable - 50 to 100% of base speed

Minimum speed

Adjustable - 0 to 30% of max speed

Connections

POT, SWITCH and Motor via .187" Quick-Fit terminals (12Ga. to 16Ga.)

Operating temperature

-20C to +50C (-4F to 122F)

Board material

FR4 (one sided for low RFI and EMI)

Internal operating voltage

About 90VDC model dependant

On board fuse

Rated 1A to 8A, model depended!

Power Requirement

120 VAC 10% @ 60 HZ model dependant at 10A min, 3-wire (Hot, Natural and Ground).






Model and Part Number (P#) Selection:



Board only



Model P#

Input Voltage

OUTPUT Voltage

MAX CONTINUOUS CURRENT

HP

EID-PIVOT-PX5-A120-B1-90VDC

120 VAC 10%

0 - 90 VDC

1 A

1/50

EID-PIVOT-PX5-A120-B2-90VDC

120 VAC 10%

0 - 90 VDC

2 A

1/20

EID-PIVOT-PX5-A120-B3-90VDC

120 VAC 10%

0 - 90 VDC

3 A

1/8

EID-PIVOT-PX5-A120-B4-90VDC

120 VAC 10%

0 - 90 VDC

4 A

1/4

EID-PIVOT-PX5-A120-B6-90VDC

120 VAC 10%

0 - 90 VDC

6 A

1/3

EID-PIVOT-PX5-A120-B8-90VDC

120 VAC 10%

0 - 90 VDC

8 A

1/2



Board with panel



Model P#

Input Voltage

OUTPUT Voltage

MAX CONTINUOUS CURRENT

HP

EID-PIVOT-PX5-A120-P1-90VDC

120 VAC 10%

0 - 90 VDC

1 A

1/50

EID-PIVOT-PX5-A120-P2-90VDC

120 VAC 10%

0 - 90 VDC

2 A

1/20

EID-PIVOT-PX5-A120-P3-90VDC

120 VAC 10%

0 - 90 VDC

3 A

1/8

EID-PIVOT-PX5-A120-P4-90VDC

120 VAC 10%

0 - 90 VDC

4 A

1/4

EID-PIVOT-PX5-A120-P6-90VDC

120 VAC 10%

0 - 90 VDC

6 A

1/3

EID-PIVOT-PX5-A120-P8-90VDC

120 VAC 10%

0 - 90 VDC

8 A

1/2




Description and P#

Price


Board



EID-PIVOT-PX5-A120-B1-90VDC



EID-PIVOT-PX5-A120-B2-90VDC



EID-PIVOT-PX5-A120-B3-90VDC



EID-PIVOT-PX5-A120-B4-90VDC



EID-PIVOT-PX5-A120-B6-90VDC



EID-PIVOT-PX5-A120-B8-90VDC







CALL



CALL



CALL



CALL



CALL



CALL







Board with panel



EID-PIVOT-PX5-A120-P1-90VDC



EID-PIVOT-PX5-A120-P2-90VDC



EID-PIVOT-PX5-A120-P3-90VDC



EID-PIVOT-PX5-A120-P4-90VDC



EID-PIVOT-PX5-A120-P6-90VDC



EID-PIVOT-PX5-A120-P8-90VDC







CALL



CALL



CALL



CALL



CALL



CALL









Aluminum Panel (only)



EID-PIVOT-PX5-PNL-AL





Call



Aluminum Panel, Main POT with wires, 4 mounting standoff and screws



EID-PIVOT-PX5-PNL-B-ST-P





Call





Enclosure (sold separately)



EID-PIVOT-CS863



EID-PIVOT-CSKO864





25.29



25.29



     EID-PIVOT-CSKO863         EID-PIVOT-CS863



Black nylon, liquid-tight cord-grip



P# EID-1427CG13





2.73
