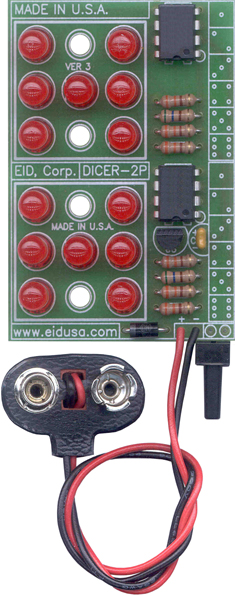

MEET DICER-2P. The fun and easy auto-roll dual random sequence dual Micro-Processor LED-dice kit.



Our dual DICER - 2P has many applications; Play your game with  DICER.  A backgammon lover's dream. Great for craps. No more dice fixing! Remember, casino games are for adults, only. Use your ESP to guess the next "roll"...Use the dual LED-dice kit anywhere you’d like to draw an audience and a smile. The unique small design will allow you to mount kit almost anywhere. Operates with 9V battery, 12V car battery, four 1.5V batteries, or via one of our battery simulator kits. The alternative uses are endless. It’s designed for the beginner as well as the expert. Please drop us a line at sales@eidusa.com and let us know the creative ways you and your friends use the dual DICER!



The BEACONER-B8 heart is the PIC micro-processor Integrated Circuit (IC) PIC12F675 (4MHZ version) by Microchip, Corp.



This kit is an educational electronics kit that allows one to customize the LED timing, speed and more by changing the Assembler code (software) provided (YES .ASM and .HEX are AS-IS and FREE!).



One can program the PIC using PIC-KIT2 by Microchip Corporation directly from personal computer (PC) via  Universal Serial Port (USB).



Note: The PIC 12F675 IC is 8 pin DIP, 14bit type Micro-processor with 4 Analog to Digital port and 6 I/O. Click here to download the the PIC 12F675 chip data-sheet.



Do It Yourself (DIY) Software driven micro-processor base kit, and have a blast!





(Switch is option)

Kit Includes:

  • PIC 12F675                         2pc.

  • 78L05  Voltage regulator       1pc.

  • Diode 1N4007                      1pc.

  • 330 Ohms         Resistor        6pc.

  • 560 Ohms         Resistor        2pc.

  • 0.1uf/50v         Capacitor      1pc.

  • Red                 LED              14pc.

  • 9V battery clips Connector     1pc.

  • PCB                                    1pc.

Schematic:







MEET DICER - 2 P Our alternating dual dice LEDs kit. The kit  is based on “PIC micro-processor PIC12F675. Using software code to randomize control  (turn ‘on’ and ‘off’) the corresponding LED's dice like numbers (1 to 6). This basic kit can work with many conventional color LEDs Green, Yellow or Red etc.



The 330 Ohms resistor determines the LED's brightness and limits the current flow to about 7mA when running with 9V battery regulated down to 5VDC. Standard LED will operate on 10-20mA and the voltage developed on the LED is about 1.6VDC, and the twwo series LEDs 3.2V therefore:



* DUAL_R_Led = (V_Bat – V_CE – V_LED -V_LED) / 20mA = (5VDC - 3.2VDC) / 7mA = 342 Ohms we use standard 5% 0.25W 330 ohms resistors. Please be advised you should never exceed the LED maximum current limitations. Doing so will result in burning the LED.



* SIGNAL_R_Led = (V_Bat – V_CE – V_LED) / 20mA = (5VDC - 1.6VDC) / 7mA = 514 Ohms we use standard 5% 0.25W 560 ohms resistors. Please be advised you should never exceed the LED maximum current limitations. Doing so will result in burning the LED.



The DICER-2P numbers are determined by the software; Each push button press will yield new dice combination.



Description and SKU#

Price


DICER 2P Kit

EID-K-DIC-ER-2P-ASM (Fully assembled)



33.33



DICER 2P Kit

EID-K-DIC-ER-2P-KIT Kit Only



27.93



EID-K-DIC-ER-2P-PCB PCB Only

15.87



  •
