The PICER-DS2-X/XP is an educational electronics kit that allows you to control two seven segment LED display directly from PIC (PIC16F690) Micro-controller.

The PICER-DS2-X/XP, is the fun and easy way to write to two Seven Segments LED Display (7 SEG).

One can program the PIC16F690 Micro-controller Flash memory using his/her PICKIT2 (sold directly from Microchip Corporation) directly from a personal computer (PC) via J2 on board connector.

The board utilizes the PIC16F690 IC (20 pin DIP configuration). The board also includes connector (J1) that allows you to connect few 10-bit ADC lines and/or a few I/Os.

Do It Yourself (DIY) build a software driven micro-processor base 7 Segments display kit, and have a blast!

Model A. The PICER DS2 kit shown above both as fully assembled (left) and PCB only (right)

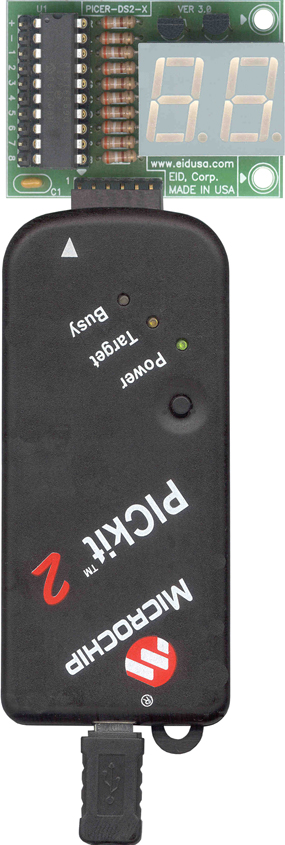

The PICER DS2 kit shown above connected to PICKIT2

down load your code and power the PICER-DS2 kit directly using your PICKIT2 via J2

PICKIT2 is a trademark of Microchip Corporation and sold directly from Microchip Corporation

Model B. PICER DS2 with 5V regulator (U1) and 90 deg. pins (optional) kit shown

Kit Includes:

• PIC 16F690                         1pc.

• LM78L05           5V Regulator 1pc. (Model B. only)

• 2 Digits             7-Seg         1pc.

• 390 Ohms         Resistor        10pc.

• MPSA14            transistors    2pc.

• 0.1uf/50v          Capacitor     1pc.

• PCB                                    1pc.

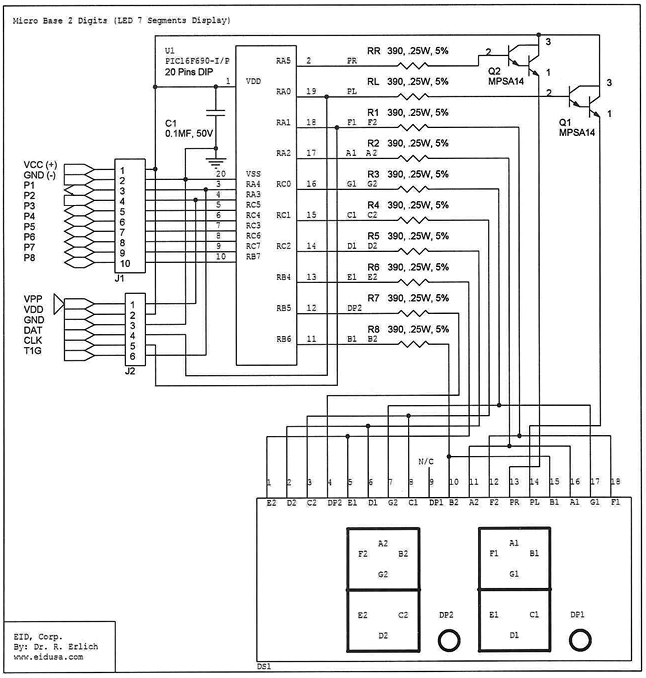

Schematic:

One can down load your code directly using your PICKIT2 via J2

Description and SKU#

Price


PIC to 2 7 Segments CHR kit (model A)

EID-K-PIC-7SEG-DS2-X-ASM  Fully assembled

29.91

PIC to 2 * 7 Seg. w/ regulator kit (model B)

EID-K-PIC-7SEG-DS2-XP-ASM  Fully assembled

32.97

EID-K-PIC-7SEG-DS2-X-KIT  Kit only (A)

19.92

EID-K-PIC-7SEG-DS2-XP-KIT  Kit only (B)

21.92

EID-K-PIC-7SEG-DS2-X-PCB  PCB only (A)

12.75

EID-K-PIC-7SEG-DS2-XP-PCB  PCB only (B)

15.75

  ^•
