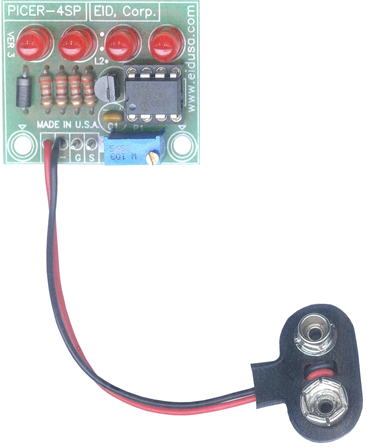

MEET PICER, The fun and easy microprocessor kit, with output LEDs and input via Switch or Voltage (ADC).

Our PICER - 4SP has many applications; This kit is an educational electronics kit that allows one to customize the LED and reading switch or voltages and more simply by writing code. The unique small design will allow you to mount it almost anywhere. Operate it with 6V, 9V battery, 12V car battery, four 1.5V batteries, or via one of our battery simulator kits. The alternative uses are endless. It’s designed for the beginner as well as the expert. Please drop us a line at sales@eidusa.com and let us know how you and your kids use your PICERS!



The PICER-4SP heart is the PIC micro-processor Integrated Circuit (IC) PIC12F675 (4MHZ version) by Microchip, Corp.



One can program the PIC using PIC-KIT2 by Microchip Corporation directly from personal computer (PC) via  Universal Serial Port (USB).



Note: The PIC 12F675 IC is 8 pin DIP, 14bit type Micro-processor with 4 Analog to Digital port and 6 I/O. Click here to download the the PIC 12F675 chip data-sheet.



Do It Yourself (DIY) Software driven micro-processor base kit, and have a blast!







Kit Includes:

  • PIC 12F675                         1pc.

  • 78L05  Voltage regulator       1pc.

  • Diode 1N4007                      1pc.

  • 330 Ohms         Resistor        4pc.

  • 10K MT-Trimmer                   1Pc.

  • 0.1uf/50v         Capacitor     1pc.

  • Red                 LED              4pc.

  • 9V battery clips Connector     1pc.

  • PCB                                    1pc.

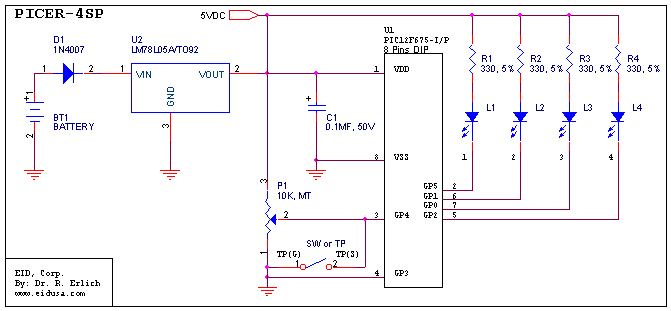

Schematic:





This basic kit can work with many conventional color LEDs Green, Yellow or Red etc.



The 330 Ohms resistor determines the LED's brightness and limits the current flow to about 10mA when running with 9V battery. Standard LED will operate on 10-20mA and the voltage developed on the LED is about 1.6VDC, therefore:



R_Led = (V_Bat – V_CE – V_LED) / 20mA = (5VDC - 1.6VDC) / 10mA = 340 Ohms we use standard 5% 0.25W 330 ohms resistors. Please be advised you should never exceed the LED maximum current limitations. Doing so will result in burning the LED.



Description and SKU#

Price


PICER-4SP Kit

EID-K-PIC-ER-SP4-ASM (Fully assembled)



33.33



PICER-4SP Kit

EID-K-PIC-ER-SP4-KIT Kit Only



30.93



EID-K-PIC-ER-SP4-PCB PCB Only

15.87



  •
