EUSB to SPI bus Kit

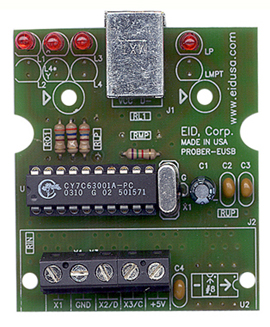

EID's universal serial bus (EUSB) to SPI bus kit is an Electronics kit that allows you to connect your personal computer (PC) Universal serial port to SPI bus components.



The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.



This unique kit design provides you with ability to wire your wires easily via terminal blocks (5). You will be able to monitor SPI components such as temperature sensors, EEPROM etc. directly from the PC



Please note: EUSB wire (USB cable) is sold separately.

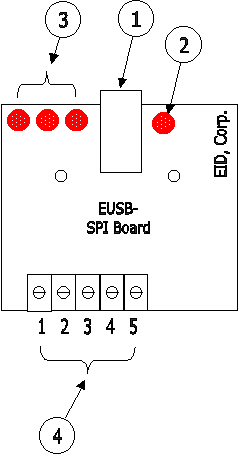

1. EUSB connector (connect your cable between the connector and your PC)

2. LED Power indicator

3. SPI status (From the left SPI-D-In, SPI-D-out, SPI-Clk) or general use LEDs

4. SPI connector (Pin 1 SPI-D-In, Pin 2 GND, Pin 3 SPI-D-Out, Pin 4 SPI-CLK,  Pin 5 +5VDC)





Kit Includes:

  • CY7C63001          IC                  1pc.

  • 7.5K Ohms           Resistor          1pc.

  • 360 Ohms            Resistor          3pc.

  • 3.3K Ohms           Resistor          1pc.

  • 0.1MF                 Capacitor        1pc.

  • 2P Terminal Block  Connector       1pc.

  • 3P Terminal Block  Connector       1pc.

  • 4.7MF                 Capacitor        1pc.

  • 0.1MF                 Capacitor        3pc.

  • Red LED              LED                4pc.

  • USB Connector                          1pc.

  • Crystal 6MZ                              1pc.

  • PCB                                         1pc.

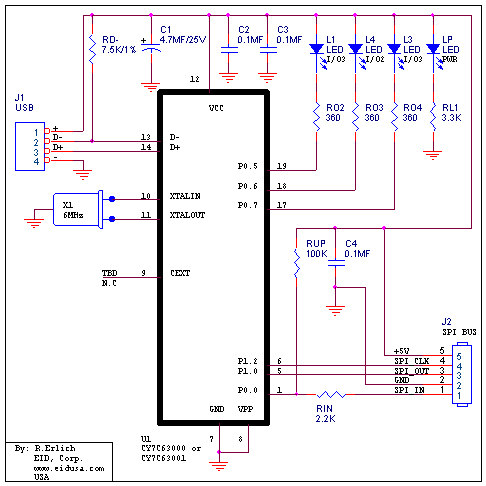

Schematic:









Description and SKU#

Price


EUSB to SPI BUS Kit

EID-K-EUSB-SPIB-ASM  Fully assembled

EID-K-EUSB-SPIB-PCB  PCB Only

EID-K-EUSB-SPIB-KIT   Kit

EID-K-EUS-BS-LIB1S  Software (Library only)



46.00

18.63

34.00

12.00

EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



  •
