EID's universal serial bus (EUSB) to 3 counters kit (3 I/O switching depended) is an educational electronics kit. It allows you to count 3 I/Os on your personal computer (PC) via universal serial port to 3 Input/output pins. The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is a Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specifications, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the CY7C63001 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.






Kit mounting



This kit includes on board pre-installed free EUSB firmware!

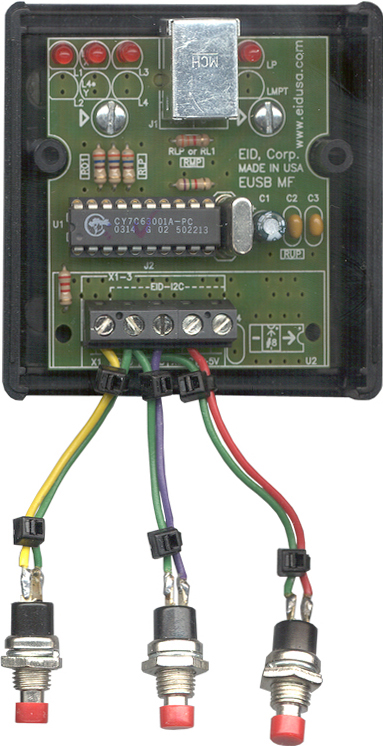

Shown above mounted in plastic enclosure (EID-1593 series).



This unique kit design provides you with the ability to wire your wires easily via front mounted terminal blocks (5). You will be able to count the switches directly from the PC.



Please note: Plastic enclosure and push-button switches are sold separately (for demonstration only).






Kit Software

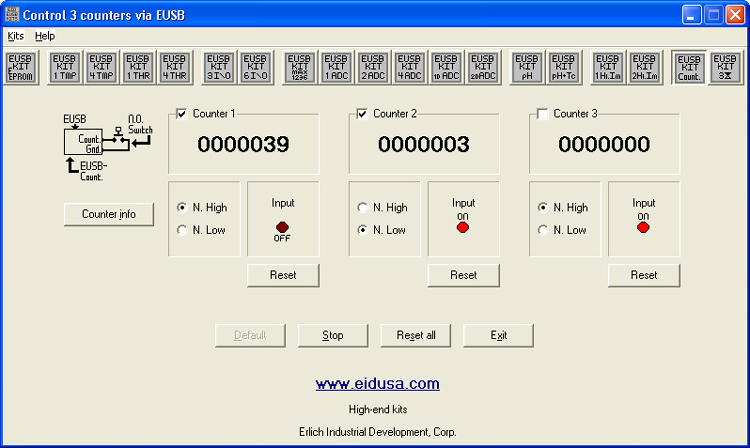

3 counters main screen shot (shown above)



Yep, Basic FREE SOFTWARE.



Simple to use. Control EUSB-kits directly from your personal computer (PC).

Our philosophy is that "NO KID or SCIENTIST WILL BE LEFT BEHIND!"



Free demo software (see above screen shot) allows you to fully count switch the number of time switch pressed via I/O pins.



Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft Corp.)



Please be advised, the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!



All you need to do is plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can count the number of switches via the on screen counter.






Kit Drawing











1. EUSB connector (connect your cable between the connector and your PC)

2. LED Power indicator

3. 3 I/O status LEDs (From the left I-1, I-2, I-3) or general use LEDs

4. Terminal block connector (Pin 1 Input-1, Pin 2 GND, Pin 3 Iinput-2, Pin 4 Input-3,  Pin 5 +5VDC)






Kit Includes

  • CY7C63001          IC                  1pc.

  • 7.5K Ohms           Resistor          1pc.

  • 360 Ohms            Resistor          3pc.

  • 2.2K Ohms           Resistor          1pc.

  • 2.4K Ohms           Resistor          1pc.

  • 0.1MF                 Capacitor        2pc.

  • 2P Terminal Block  Connector       1pc.

  • 3P Terminal Block  Connector       1pc.

  • 4.7MF                 Capacitor        1pc.

  • Red LED              LED                4pc.

  • USB Connector                          1pc.

  • Crystal 6MZ                              1pc.

  • PCB                                         1pc.




Kit Schematic










Software and schematic note



1. FREE pre-installd EUSB firmware.



2. LEDs controlled via the following Ports and bit-number:

P0.5 - L1 (On board red LED)

P0.7 - L3 (On board red LED)

P0.6 - L4 (On board red LED)

3. I/Os connector's pin controlled via the following Ports and bit-number:

P0.0 - I/0 #1 (J2 pin 2)

P0.1 - I/0 #2 (J2 pin 3)

P1.2 - I/0 #6 (J2 pin 7)



Note: P0.0 have and external pull-up & input resistors. Ideally for foot and or remote switches. All I/O pins have on chip pre configured pull-up resistors.




EUSB Basics








Description and SKU#

Price


EUSB to Counters (3 I/O Kit)

EID-K-EUSB-3CNT-ASM   Fully assembled

EID-K-EUSB-3CNT-PCB   PCB Only

EID-K-EUSB-3CNT-KIT   Kit

EID-K-EUS-BS-LIB1S    Software (Library only)



45.00

18.63

29.75

12.00



EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
