MEET ALERTER - E4 and E4T. The fun and easy E-MAIL ALERT LED kit, e-mail account LEDs indicator kit.
Yes the kit indicates new e-mail arrival, even when your monitor is turn off, or in sleep mode! Our ALERTER - E4 has many applications; indicating new e-mail via front mounted four bright light ( 4 red LEDs). Mount the ALERTER on your screen or computer desk, so you'll be able to see when new mail arrived (basic free version up to 4 different accounts). Place ALERTER anywhere you’d like to draw attention and a smile. The unique small design will allow you to mount it almost anywhere. This alternative uses are endless. It’s designed for the beginner as well as the expert. Please drop us a line at Sales@eidusa.com and let us know the creative ways you use your ALERTER!
So many feature to list, the software provided to download for free (on AS IS based). The software aloud you to configure the kit for monitoring e-mail for you and your siblings, Yep--wile you on the computer they can take a pick on the ALERTER and to see if they have new email without interfere your web surfing or work.
*** New OEM product from EID ***
See and hear when new mail is arrived in 4 different accounts
Do It Yourself (DIY) and enjoy your kit.

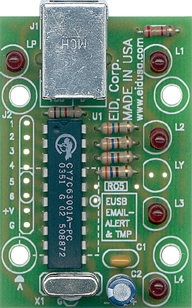

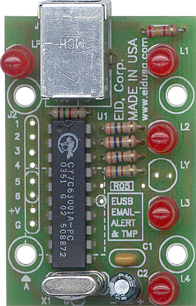

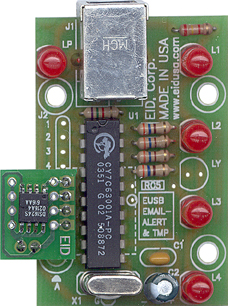

Model A. 4 e-mail alert LEDs and EUSB power indication LED (Shown with Large LED right, and small LED on the left)

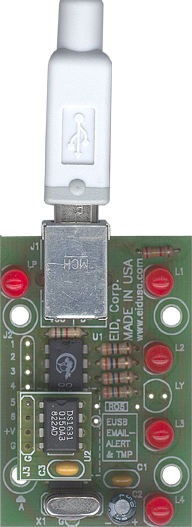

Model B. 4 e-mail alert LEDs and EUSB power indication LED + temperature sensor option
PDIP Configuration SMT Configuration
Many temperature I2C sensor option are available both PDIP and SMT as shown above.
Temperature sensor: DIP- DS1621/31, SMT DS1621/31/24
EID's universal serial bus (EUSB) to 4 E-Mail Alert kit is an educational electronics kit that connect to your personal computer (PC) universal serial port USB. The kit is based on Cypress integrated circuit (IC), the CY7C63001.
Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C63001 chip data-sheet.
*** No need for external Power supply! The board is powered directly from your PC. ***
This kit includes on board pre-installed free EUSB firmware!

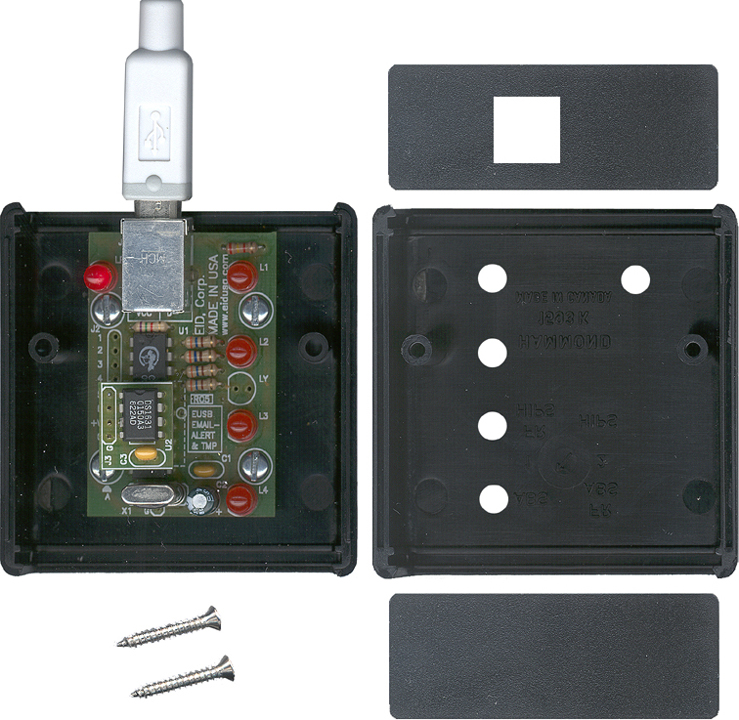

Kit mounting
This kit will mount with up to four (4) 4-40 * 1/4" screws in plastic enclosure (EID-1593 series).
Please note: EUSB wire (USB cable), plastic enclosure and temperature option are sold separately (for demonstration only).
Kit Software

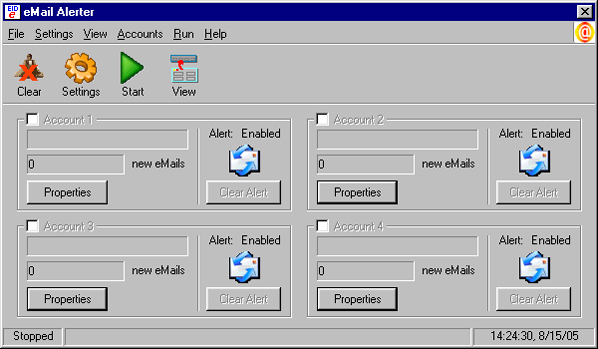

4 E-mails monitoring/Alerting control screen shot (shown above)

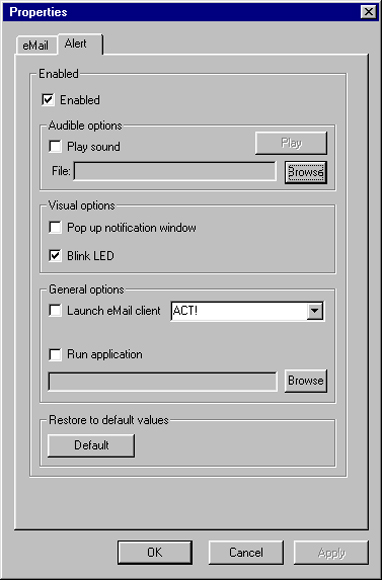

Individual alert option configuration screen shot (shown above)

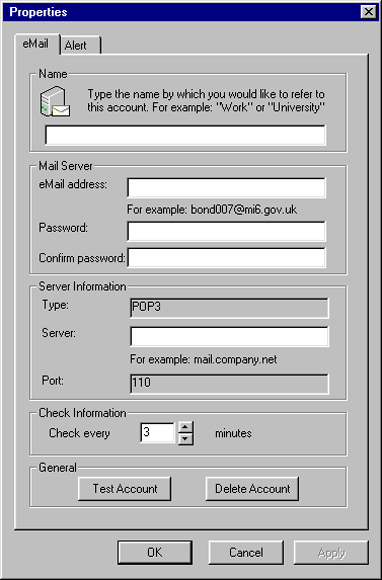

Individual eMail configuration screen shot (shown above)

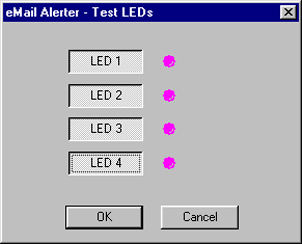

Individual e-mail LED test screen shot (shown above)

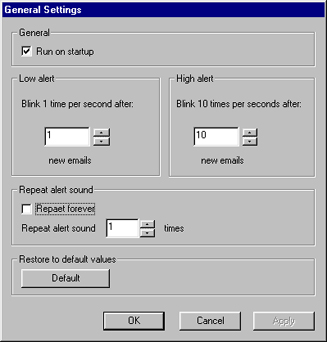

General Settings screen shot (shown above)
Yep, Basic FREE SOFTWARE.
Simple to use. Control EUSB-kits (ALERTER - E4 and E4T) directly from your personal computer (PC). Our philosophy is that "NO KID or SCIENTIST WILL BE LEFT BEHIND!"
Free demo software (see above screen shot) allows you to fully control the 4 on board LEDs. Turn them on and off as function of your POP e-mail
Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft Corp.)
Please be advised, the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!
All you need to do is to plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can view when new email arrive via the kit's LEDs.

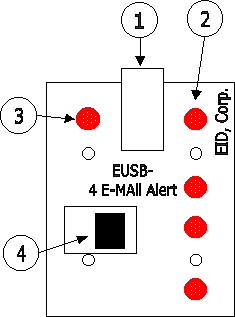

Kit Drawing
1. EUSB connector (connect your cable between the connector and your PC) 2. 4 E-mail status LEDs (One for you, one for Joe, One for your other account, one for Brenda...) 3. LED Power indicator 4. Room temperature status option
Kit Includes model A.
Kit Includes model B.

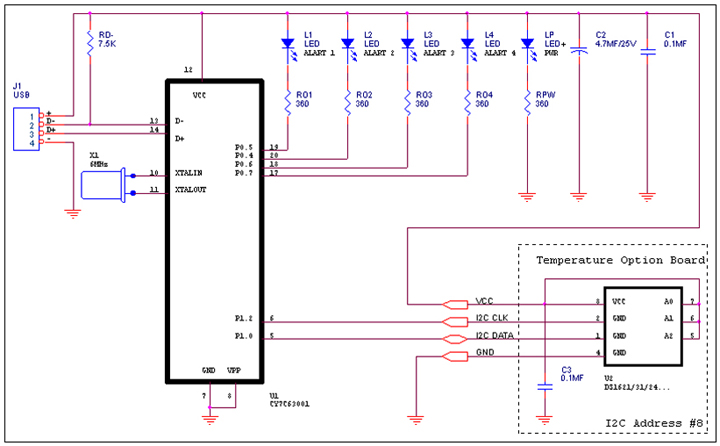

Kit Schematic
Software and schematic note
1. FREE pre-installed EUSB firmware.
2. LEDs controlled via the following ports and bit-number:
EUSB Basics
|
||
|
|
Price |
Picture |
|
EUSB 4 E-Mail Alert kit EID-K-EUS-BS-ALERTER-E4-ASM Fully assembled EID-K-EUS-BS-ALERTER-E4-KIT Kit EID-K-EUS-BS-ALERTER-E4-SFT Software V1 |
49.75 39.93 Free |
|
|
EUSB 4 E-Mail Alert with room temperature option kit EID-K-EUS-BS-ALERTER-E4T-ASM Fully assembled EID-K-EUS-BS-ALERTER-E4T-KIT Kit EID-K-EUS-BS-ALERTER-E4T-SFT Software V1PT |
59.54 49.33 15.95
|
|
|
EUSB 4 E-Mail Alert PCB EID-K-EUS-BS-ALERTER-E4-PCB PCB only |
12.00 |
|
|
EUSB 4 E-Mail Alert Temperature option PCB EID-K-EUS-BS-ALERTER-T1-PCB PCB only |
6.00 |
|
|
EUSB
A to B Cable This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.
EID-C-USB-32-930
3’ EID-C-USB-32-931
6’ EID-C-USB-32-932
10’ EID-C-USB-32-933 15’ |
9.99 10.99 11.99 15.99 |
|
|
USB Complete (Second Edition) by J. Alexson EID-K-BOOK-USB-001 Regular price EID-K-BOOK-USB-0KC w/ kit purchase
NEW! We carry technical books... LEARN & SAVE!
This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!
|
49.95 33.33 |
|
|
|
||
