PWM 12VDC MOTOR SPEED CONTROLLER is a pulse With Modulation (PWM) motor speed control kit.



Do It Yourself (DIY) and enjoy your kit.

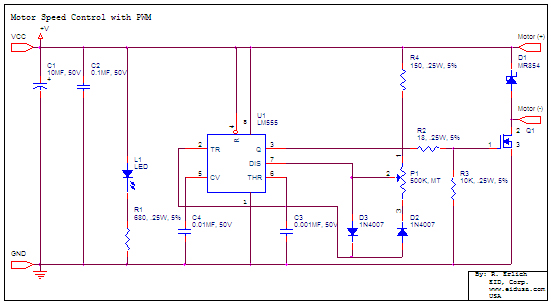

Schematic





Options



A. External 12VDC motor connection.





B. External 12VDC motor connection via bi-directional switch.



The voltage polarity of the motor will switch, therefore, its direction will reverse.





Description and SKU#

Price


12VDC MOTOR SPEED CONTROL Kit

EID-K-MOT-OR-SC12V-ASM Fully assembled



36.00



EID-K-MOT-OR-SC12V-KIT Kit

28.99



EID-K-MOT-OR-SC12V-PCB PCB Only

8.99





  •
