SCALER – XRA  Analog scaling current/voltage range scale (convert) to new voltage range

The SCALER-XRA board is designed to perform voltage or current to voltage conversion. If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.

The SCALER-XRA  is easy to install, setup and operate. If you want to do professional analog voltage conversion measurement related functions, The SCALER-XRA offers the features you need. Mounted easily via 0.125" mounting hole.

Simply connect the board to 24VAC, connect your analog voltage/current source (i.e. sensor output) to the input and our board will convert it to new voltage range.

Precise calibration with simple SPAN and ZERO adjustments.

The board can be easily modified for different input and output voltages ranges. As seen on the right. Commonly utilized as the heart of DC to DC voltage scale for sensor Amplified and In-Line Amplified Transducer.

For remote applications, using our voltage to current converter, you will be able to convert the output voltage to 4-20mA current. Ask our engineers for more details.

The board power from 24AC and has auxiliary output of +15V which can be customized.

-- The SCALER interface board is ideal analog voltage/current/resistance scaling board (middle-man) between your sensor (AD590/2 RDT, Thermistor etc.) non-standard sensors, transducer, transmitter, 4-20mA  equipment, controller, actuator, dumper...

Simply specify the input and output voltages range and let our engineers build for you the scaling board.  --

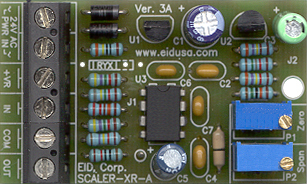

The V to V scaling board as shown above.

0V to 10V input scale to 2V to 10V output

P# EID-SCALER-P00-P10-P02-P10

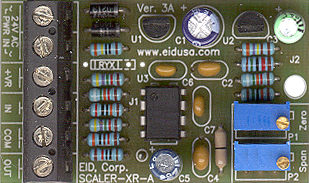

The V to V scaling board as shown above.

-2.5V to 2.5V input scale to 0V to 5V output

P# EID-SCALER-N2X5-P2X5-P00-P05

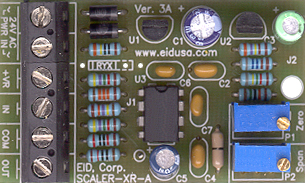

The V to V scaling board as shown above.

-2.5V to 2.5V input scale to 0V to 10V output

P# EID-SCALER-N2X5-P2X5-P00-P10

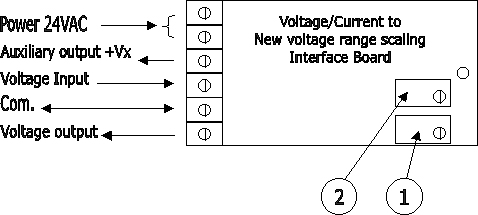

Precise calibration with simple SPAN and ZERO adjustments:

1. Span with multi-turn trimmer adjustment.

2. Zero with multi-turn trimmer adjustment.

CONVERTER – FV1 Features

• Can be customized to accommodate your input voltages and current requirement.

• Can be customized to accommodate your output voltage range requirement.

• Scaling input to output span and zero via fine resolution trimmers

• Also, designed to operate from 24AC, all SCALER's board has auxiliary +15V output (for sensor drive). Output auxiliary can be custom to feet your need i.e 10VDC, 18VDC...

Specifications

• Input voltage.                          +/-V custom with on board 2Hz Low pass filter

• Input Impedance voltage            >100K Ohms

• Input Impedance current            61.9 Ohms

• Output voltage                         +/-V custom

• Output Aux. voltage                  15VDC standard can be custom

• PCB material                             FR4 (UL approved)

• Max power consumption              0.5W

• Storage temperature                  40 - 70   [F]

• Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage                 -5,15 [V]

• Power source                            24VAC +/-12%, 50/60Hz

• Adjustment                              Via trimmer Zero/Span +/-20%

• Mounting                                  0.125” holes

• Manufactured                           100% in USA

Pricing

* Prices, SKU#, P# and colors are subject to change without notice.

SCALER-N2X5P2X5P00P05

scale +/-2.5V input voltage to 0-5V output voltage.

EID-SCALER-N2X5-P2X5-P00-P05

$79.00

SCALER-N2X5P2X5P00P10

scale +/-2.5V input voltage to 0-10V output voltage.

EID-SCALER-N2X5-P2X5-P00-P10

$79.00

SCALER-P00P05P00P10

scale 0-5V input voltage to 0-10V output voltage.

EID-SCALER-P00-P05-P00-P10

$79.00

SCALER-P0X2P1X2P00P10

scale 0.2V-1.2V input voltage to 0-10V output voltage.

* 4-20mA input current over 61.9 ohms on board resistor --> 0.2V-1.2V input

EID-SCALER-P0X2-P1X2-P00-P10

$87.00

SCALER-P0X2P1X2P00P10

scale 0.2V-1.2V input voltage to 0-5V output voltage.

* 4-20mA input current over 61.9 ohms on board resistor --> 0.2V-1.2V input

EID-SCALER-P0X2-P1X2-P00-P05

$89.00

SCALER-P0X2P1X2P7X75P2X25

scale 0.2V-1.2V input voltage to 3.75-2.25V output voltage.

* 4-20mA input current over 61.9 ohms on board resistor --> 0.2V-1.2V input

Ideal for some controllers inputs

EID-SCALER-P0X2-P1X2-P3X75-P2X25

$93.00

SCALER-P2X73P3X73P00P5

scale 2.73V-3.73V input voltage to 0-5V output voltage.

* AD590/2 temperature sensor 0-100C --> 2.73-3.73 output voltage

EID-SCALER-P2X73-P3X73-P00-P05

$85.00

SCALER-P2X73P3X73P00P10

scale 2.73V-3.73V input voltage to 0-10V output voltage.

* AD590/2 temperature sensor 0-100C --> 2.73-3.73 output voltage

EID-SCALER-P2X73-P3X73-P00-P10

$85.00

SCALER-P2X73P3X73P00P10

scale 2.23V-4.23V input voltage to 0-10V output voltage.

* AD590/2 temperature sensor -50C to 150C --> 2.23-4.23 output voltage

EID-SCALER-P2X23-P4X23-P00-P10

$93.00

SCALER-P00P10P02P10

scale 0-10V input voltage to 2-10V output voltage.

* If the output 2-10V feed the voltage to current board for an output of 4-20mA

EID-SCALER-P00-P10-P02-P10

$82.00

SCALER-P00P10P06P09

scale 0-10V input voltage to 6-9V output voltage.

* Ideal for some actuators

EID-SCALER-P00-P10-P06-P09

$91.00

SCALER-N05P05P00P01

scale +/-5V input voltage to 0-1V output voltage.

EID-SCALER-N05-P05-P00-P01

$79.00

SCALER-N05P05P00P05

scale +/-5V input voltage to 0-5V output voltage.

EID-SCALER-N05-P05-P00-P05

$79.00

SCALER-N05P05P00P10

scale +/-5V input voltage to 0-10V output voltage.

EID-SCALER-N05-P05-P00-P10

$79.00

SCALER-N05P05N2X5P2X5

scale +/-5V input voltage to 0-10V output voltage.

EID-SCALER-N05-P05-N2X5-P2X5

$93.00

SCALER-XRA-CUSTOM

scale +/-custom input voltage to +/- custom output voltage.

EID-SCALER-AAA-BBB-YYY-ZZZ

$159.00

  ^•
