INTERFACER-IPH1 - Industrial High Impedance Input voltage to pH converter.

The INTERFACER-IPH1 board is designed to perform pH electrode reading and amplification. If used properly, it will eliminate the need for expensive meter, which would otherwise be needed to carry out the same tasks.

INTERFACER-IPH1  is easy to install, setup and operate. If you want to do professional Industrial pH measurement related functions, INTERFACER-PH1 offers the features you need. Mounted easily via four 0.125" mounting holes.

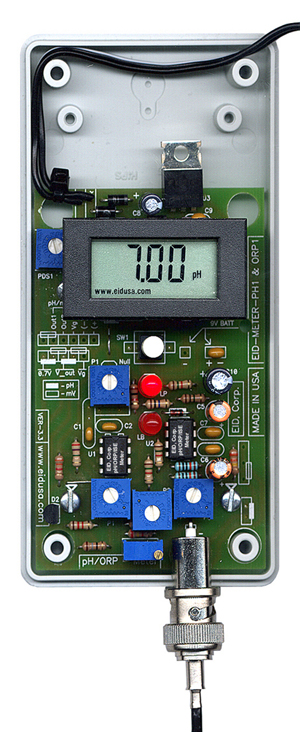

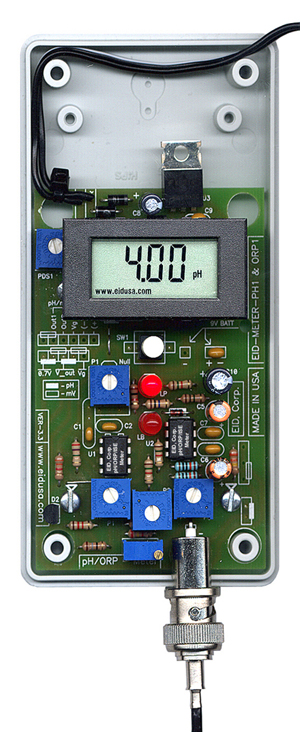

1. Shown on the right mounted in plastic enclosure (EID-1593 series enclosure). The board design to attenuate filter and regulate 10-24V DC or AC to stable 9V DC.

For our 110V or 220V to 12VAC Power down transformer (Class 2 Type Transformers EID-BP series) click Here

For our line of ph electrodes click here

ELECTRODER - General Purpose pH Electrode (GPH)

pH combination electrode, epoxy body, fixed guard, PIN junction, 12mm * 120mm, 0-14 pH range

For our fine line of pH electrodes click here

For our stat of the art line of Industrial pH electrodes click here

INTERFACER-IPH1 Features

• Built-in power and low indicator.

• High impedance input amplifier (10 EXP14).

• Power switch option.

• Offset null adjustment via trimmer.

• Temperature, reference voltage and slope adjusted via trimmer.

• Also, designed to operate from 12VDC car battery via Our 12v to 9V adapter for remote applications.

Specifications

• Input resistance                      > 10^14 Ohms

• Input voltage                          +/-2.5V

• Output voltage                        0-140mVDC or 0 to 1.4VDC

• PCB material                            FR4

• Output Voltage                        Float

• Max power consumption            0.1W

• Storage temperature                40 - 70   [F]

• Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage                9 [V]

• Power source                          9V battery or EID's 9V voltage simulator

• Power indicator                        LED Red

• Low power indicator                  LED Red

• Manufactured                          100% in USA

Pricing

* Prices, P#, SKU# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

INTERFACER-IPH1 pH meter board with build-in power regulator. Power via 11-24VDC.

EID-INTERF-ACE-IPH1P

$189.00

Power switch addition.

EID-INTERF-ACE-IPH1P-PSW

$3.99

pH electrode. ELECTRODER-GPH with 3' wire, BNC connector, DJ, blue epoxy body and Red cup.

EID-E-GPH-A001

$49.70

pH electrode. ELECTRODER-GPH and  INTERFACER-IPH1 pH meter board  combination

EID-INTERF-ACE-IPH1P-GPH

$225.99

  ^•
