OEM MODULE – VOLTAGE DIVIDER - A voltage divider and L.P.F. (Low Past Filter) industrial transducer Board.



This board offers a simple, state-of-the-art, reliable way to convert (attenuate) large input voltage signal to a low level voltages value. i.e 0 to 5 V into 0 to 3V.



The MODULE VOLTAGE DIVIDER VDX, voltage to lower voltage converter, is a signal voltage or altering voltage (AC) to a lower signal value, both for AC and DC.

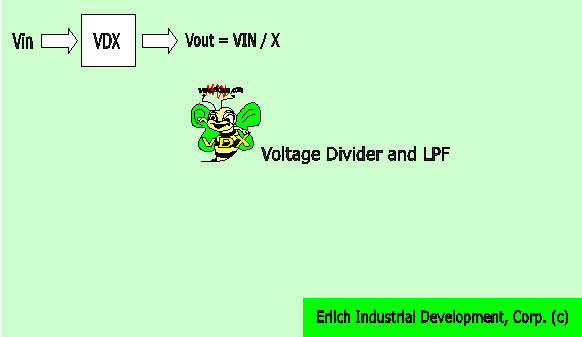

Shown above in 0 to 10V to 0 to 3.0V voltage divider configuration Ideal for PLC with on board ARM base micro controller.



The MODULE VOLTAGE DIVIDER VDX, board is designed to perform voltage to lower voltage value conversion. If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



The MODULE VOLTAGE DIVIDER VDX  is easy to install, setup, and operate. If you want to do professional scientific voltage measurement related functions, The MODULE VOLTAGE DIVIDER VDX offers the features you need. It can be mounted easily via two 0.125" mounting holes using 4-40 screws.



Simply connect the board input to incoming voltage signals source i.e 0 to 10VDC and our board will convert it to an output equal to input signal divided by a factor X.









Precision Voltage Divider

1. Input Voltage (VIN & COM)

2. Output Voltage (COM & VOUT)





Voltage divider industrial standard configuration models:



Model #

Factor

(%)

Sample Input Voltage

Output Voltage

EID's OEM P#

VD-10X0

10

10%

0-10V

0-1V

EID-CONVER-TER-VD-10X0-4TB












VD-08X0

8

 12.5%

0-20V

0-2.5V

EID-CONVER-TER-VD-08X0-4TB












VD-07X2

7.2

 13.8%

0-36V

0-5V

EID-CONVER-TER-VD-07X2-4TB












VD-06X0

6

 16.6%

0-30V

0-5V

EID-CONVER-TER-VD-06X0-4TB












VD-05X0

5

 20%

0-15V

0-3V

EID-CONVER-TER-VD-05X0-4TB












VD-04X0

4

 25%

0-10V

0-2.5V

EID-CONVER-TER-VD-04X0-4TB












VD-03X3

3.3

 30%

0-10V

0-3V

EID-CONVER-TER-VD-03X3-4TB












VD-03X0

3

 33.3%

0-3V

0-1V

EID-CONVER-TER-VD-03X0-4TB







0-10V

0-3.3V









0-15V

0-5V














VD-02X5

2.5

 40%

0-20V

0-8V

EID-CONVER-TER-VD-02X5-4TB







0-10V

0-4V














VD-02X0

2

 50%

0-24V

0-12V

EID-CONVER-TER-VD-02X0-4TB







0-10V

0-5V














VD-01X6

1.6

 62.5%

0-5V

0-3V

EID-CONVER-TER-VD-01X6-4TB












VD-01X6

1.5

 66.6%

0-15V

0-10V

EID-CONVER-TER-VD-01X5-4TB







0-36V

0-24V














VD-01X2

1.2

 83.3%

0-12V

0-10V

EID-CONVER-TER-VD-01X2-4TB






0-6V

0-5V







Mounting Option

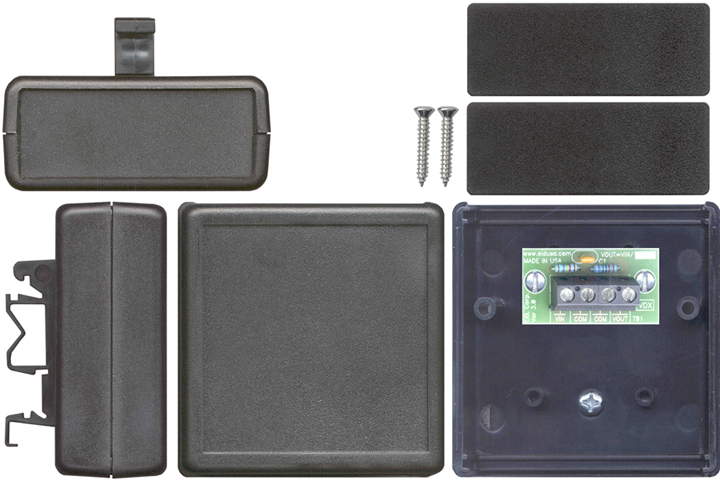

Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications





EID-1593KBK Black ABS plastic instrument enclosure with Din-Rail mounting options

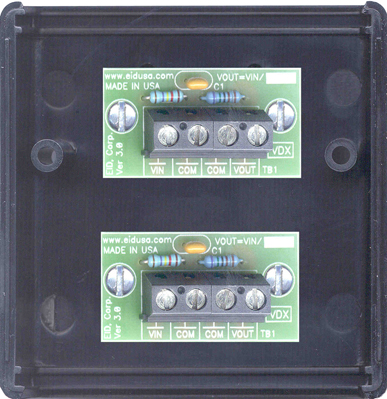

EID-1593KBK Black ABS plastic instrument enclosure configure with two voltage divider boards



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).





Specifications

  • Max power consumption              0.5W

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Mounting                                  Two 0.125” (3.1mm) holes with centers distance of 1.1" & 2.1"

  • Board dimensions                       1.39" & 0.75" (35.3mm * 19.0mm)

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 10

EID-CONVER-TER-VD-10X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 8

EID-CONVER-TER-VD-08X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 7.2

EID-CONVER-TER-VD-07X2-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 6

EID-CONVER-TER-VD-06X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 5

EID-CONVER-TER-VD-05X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 4

EID-CONVER-TER-VD-04X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 3.3

EID-CONVER-TER-VD-03X3-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 3

EID-CONVER-TER-VD-03X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 2.5

EID-CONVER-TER-VD-02X5-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 2

EID-CONVER-TER-VD-02X0-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 1.6

EID-CONVER-TER-VD-01X6-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 1.5

EID-CONVER-TER-VD-01X5-4TB

$24.33

VOLTAGE-DIVIDER-VDX MODULE A voltage divider with LPF with terminal-block (4 positions), Division factor 1.2

EID-CONVER-TER-VD-01X2-4TB

$24.33

Modified Translucent blue ABS Plastic Instrument enclosures option

EID-1593KBK

$7.98

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

  •
