OEM TRANSDUCER–VFC-OG - Isolated Voltage to Frequency Converter Industrial Super Transducer. With Offset and Gain adjustments.



The TRANSDUCER–VFC-OG isolated voltage to frequency converter is a voltage signal to frequency pulse 10KHz (Proportional)  super transducer board for HVAC (Heating, Ventilation and Air Conditioning), electro-hydraulic and servo electronics; actuator, dampers, bleed pilot valve, globe valves, butterfly valves, plug valves, dampers and more. Commonly utilized as the heart of VFC In-Line Amplifier VFC-ILA.



The TRANSDUCER–VFC-OG board is designed to perform voltage to frequency conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



The TRANSDUCER–VFC-OG  is easy to install, setup, and operate. If you want to do professional voltage to isolated frequency related functions, The TRANSDUCER–VFC-OG offers the features you need. It can be mounted easily via 0.125" mounting holes using 4-40 screws.



Simply connect the board to power connect your voltage source i.e. 0 to 10V to the board input and it will convert it to frequency pulse 0-10KHz (model depended).



Note: 1HZ = 60RPM therefore 10KHz => 600000 RPM. We chose input of 0 to 10V because standard PLC and industrial interface excepts transducers with 0-10KHZ input. Whoever we also have 0-2KHZ and 0-5KHZ models.





Our TRANSDUCER–VFC-OG OEM Isolated Voltage to Frequency Converter (VFC) board is designed to convert a an analog voltage to optical isolated continuous series of digital pulses (frequency).



Super performance in is class; The Industrial board Offset and Gain adjustment allows the unit to deliver full-scale output frequency for any voltage input  within the limits of voltage and frequency range rating. It will provide an ultimate combination of fast response and low ripple.



Note: For systems that requires opto isolated signal output i.e. voltage to voltage converter, use our OEM FVC (frequency to Voltage board) together with the ISO VFC board. I.e. The industrial signal 0-10VDC will convert to isolated frequency 0-10KHZ and then back to 0-10VDC.

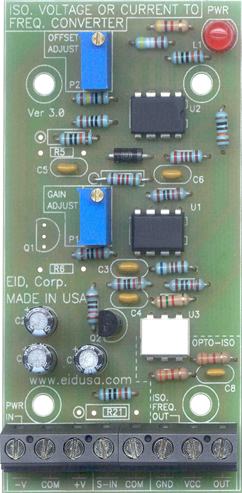

Super precision Isolated Voltage-to-Fervency Transducer/Converter/Transmitter



1. Power +/-15V DC

2. Input Voltage (i.e. 0 to 10V DC)

3. Isolated Output Frequency GND, VCC, OUT (i.e. 0 to 10KHz power from external 15VDC)



Precise calibration with simple OFFSET and GAIN adjustments:



4. 0V - input 0Hz output multi-turn trimmer OFFSET adjustment.

5. 10VDC input  10KHz output model depended multi-turn trimmer GAIN adjustment.



6. Power Indicator






Frequency to Voltage industrial standard configuration models:



Model #

Input Voltage

Output Frequency

EID's OEM P#









VF1-A10

0 to 10V

0 to 2KHz

EID-CONVER-TER-VF-A10-2KHZ-8TB









VF1-A10

0 to 10V

0 to 5KHz

EID-CONVER-TER-VF-A10-5KHZ-8TB









VF1-A10

0 to 10V

0 to 10KHz

EID-CONVER-TER-VF-A10-10KHZ-8TB














Mounting Option



Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications





EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side view





The board shown above mounted in EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).






Board Powering--



Below are some power supply example for generating -/+ 15VDC required to power the isolated voltage to frequency transducer. The module requires a bipolar 30VDC power supply (+/-15 V DC) for operation.





One can use our POWER-AC3PNDC-15LD a Low Current Dual Output 15 & -15 Voltage DC power supply board/Regulator Interface board with step-down power transformer (110V/60HZ primary) shown above on the (left) to power the isolated voltage to frequency converter board (right), mounted in EID1593KBK sold separately.



---





One can use our POWER-AC3PNDC-15C a Low Current Dual Output 15 & -15 Voltage DC power supply board/Regulator Interface board power of Center Tap (CT) 24VAC CT-transformer shown above on the (left) to power the isolated current to frequency converter board (right), mounted in EID1593KBK sold separately.



---





One can use our POWER-AC2PNDC-15A a Low Current Dual Output 15 & -15 Voltage DC power supply board/Regulator Interface board power of 24VAC transformer shown above on the (left) to power the isolated current to frequency converter board (right), mounted in EID1593KBK sold separately.



Note: For powering more then 2 isolated voltage to frequency transducer use POWER-PSD15 or Adjustable Dual Output Positive & Negative Voltage Power-Supply set to output voltage of +/-15VDC.






TRANSDUCER–VFC-OG Features



  • 0-10VDC input 0-10KHz output multi-turn trimmer both Offset and Gain adjustments.

  • Power via +/- 15V DC industrial standard.

  • Converts 0-10V Voltages to 0-10Khz frequencies

  • Can be customized to accommodate your input or output voltage and frequency requirement.

  • Industrial Standard output of 0-10KHz makes the TRANSDUCER ideal for remote signal isolating.

  • Linear frequency output.

  • On board trimmer facilitates precise Offset calibration of output current (0.000V input to 0.0Hz  output)

  • On board trimmer facilitates precise Gain calibration of output current (10.00V input to 10KHz output)

Specifications

  • PCB material                              FR4

  • Max power consumption               0.5W

  • Storage temperature                   40 - 70   [F]

  • Operating temperature                4 - 140 [F] (-20 to 60°C) @ 95% RH

  • Mounting                                  Four 0.125” (3.1mm) holes with centers distance of 1.1" & 2.1"

  • Board dimensions                       1.7" & 3.275" (43.2mm * 83.2mm)

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# specification and colors are subject to change without notice.

Description

SKU #

Price

TRANSDUCER–VFC-OG Voltage (0V to 10V) to Frequency (0V to 2KHz)  super transducer (converter) with Offset and Gain and terminal-block (8 positions).

EID-CONVER-TER-VF-A10-2KHZ-8TB

$297.93

TRANSDUCER–VFC-OG Voltage (0V to 10V) to Frequency (0V to 5Hz)  super transducer (converter) with Offset and Gain and terminal-block (8 positions).

EID-CONVER-TER-VF-A10-5KHZ-8TB

$297.93

TRANSDUCER–VFC-OG Voltage (0V to 10V) to Frequency (0V to 10KHz)  super transducer (converter) with Offset and Gain and terminal-block (8 positions).

EID-CONVER-TER-VF-A10-10KHZ-8TB

$279.93

Modified Translucent blue ABS Plastic Instrument enclosures option

EID-1593LTBU

$10.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

  •
