INTERFACER-CBS. High accuracy single channel signal to up to quad buffered/splitter board.



The INTERFACER-CBS board is designed to perform two tasks:



1. buffer input signal to up to four outputs via unity gain amplifier. Thus insure quality signals from, and to the Controller, HVAC, PLC, Damper or Actuator. The output tracks the input voltage 0 to 10V with addition of input Low past filter LPF.



2. Split and input single and buffered the split signal into up to four (4) signals outputs via unity gain amplifier. I.e. Input 1 (IN) 10V to 0V signal to 0V to 10V on all the four outputs 1, 2,3 and 4.



If used properly, it will eliminate the need for expensive splitter or buffered equipment which would otherwise be needed to carry out the same tasks. Commonly utilized as the heart of splitter for Amplified and In-Line Amplified Transducers.



INTERFACER-CBS is easy to install, setup and operate. If you want to do professional voltage measurement and signal buffer related functions, INTERFACER-CBS offers the features you need. Mounted easily via two 0.125" mounting holes.



The board design to powered via industrial standard 24V AC



All wires to and from the board down via Terminal Blocks.





Single input signal to up to 4 buffered outputs. Connect and pass throw signal to multiple PLCs, Controllers, and or systems-reading from a single source.




Mounting

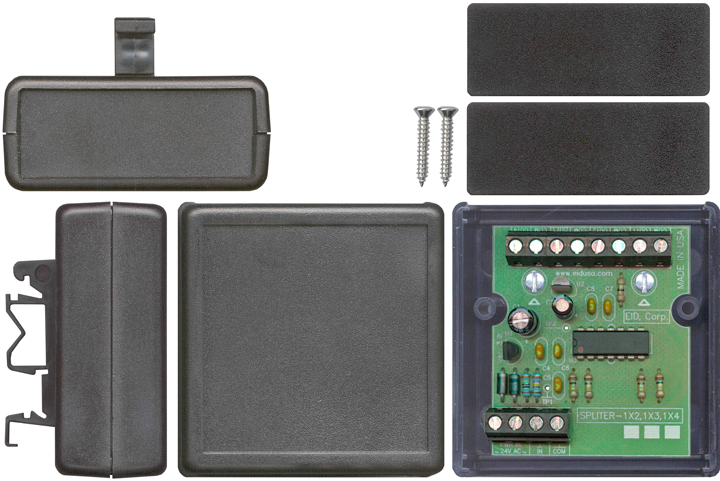

Shown above encapsulated in plastic enclosure (EID-1593 series enclosure) with din-rail-clip (optional).



Note:



Plastic enclosure, wires and Din-Rail-clip are sold separately (for demonstration only).








precision Voltage-to-quad voltage splitter Super Transducer





1. Power 24V AC

2. Input voltage 0-10VDC

3. Output 1 to 4 with mirror input voltage






Specifications

  • PCB material                            FR4

  • Output Voltage                        Ref. to ground voltage or -5V

  • Max power consumption            0.2W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               -5 and -15 [VDC]

  • Power source                          24V AC

  • Input resistance                      > 100 [K  Ohms]

  • Input signals                           0 to 10V DC

  • Output Signals                        -2.5 to 10V DC

  • Manufactured                         100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

INTERFACER-CBS High accuracy 1 channel signal buffer and splitter into 4 outputs Power via 24VAC.

EID-INTERF-ACER-CBS-XX15

$127.92

  •
