RELAYER-IDMC-HL Industrial Dual medium current Relays board with High or Low signal input and DIN-RAIL enclosure mounting option



The RELAYER-IDMC-HL board is designed to turn two relays on and off as a direct response to low voltage inputs signals, TTL, CMOS etc. Where each individual relay has two optional input signal; High or Low. While each relay has it own switching output capabilities.



If used properly, it will eliminate the need for expensive units, which would otherwise be needed to carry out the same tasks.



RELAYER-IDMC-HL is easy to install, setup and operate. If you want to do professional switching related functions, RELAYER-IDMC-HL  offers the features you need. Mounted easily via two 0.125" mounting holes.

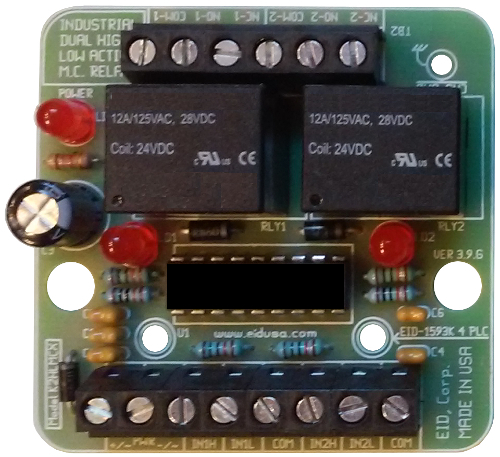

Shown above RELAYER-IDMC-HL  Model C with dual 24V coil "C type" relays



Note: When the dual relay module is powered on, all relays (and LEDs) are "Off", individual signal HIGH or LOW will turn its corresponding relay "On", while the module power on indictor will remain lit as long the module is powered.








Figure A



1. Input Power:  (front view, left to right) 12 or 24V relay's coils model depended; follow by Input control signal: with common ground. IN1H, IN1L, COM, IN2H, IN2L, COM

2. Medium size "C" type Relays outputs (front view, left to right) COM-1, NO-1, NC-1, COM-2, NO-2, NC-2.

3. LED power indicator.

4. LED Relay 1 "ON" (trip) indicator.

5. LED Relay 2 "ON" (trip) indicator.

6. Chassis ground wire connection (optional)






Dual opto-isolated medium current relay boards configuration models:



Model #

Inputs Voltage

Relays coils

EID's OEM P#

RELAYER-IDMC-HL

0-5V DC (TTL)

12V

EID-RELAYER-IMCHL-12VRT

RELAYER-IDMC-HL

0-10V DC (HVAC)

12V

EID-RELAYER-IMCHL-12VRH

RELAYER-IDMC-HL

0-24V DC (INDUSTRIAL)

12V

EID-RELAYER-IMCHL-12VRI

RELAYER-IDMC-HL

0-XV DC (CUSTOM)

12V

EID-RELAYER-IMCHL-12VRCX









RELAYER-IDMC-HL

0-5V DC (TTL)

24V

EID-RELAYER-IMCHL-24VRT

RELAYER-IDMC-HL

0-10V DC (HVAC)

24V

EID-RELAYER-IMCHL-24VRH

RELAYER-IDMC-HL

0-24V DC (INDUSTRIAL)

24V

EID-RELAYER-IMCHL-24VRI

RELAYER-IDMC-HL

0-XV DC (CUSTOM)

24V

EID-RELAYER-IMCHL-24VRCX






RELAYER-IDMC-HL Features



  • Built-in relay on LED indicator for each relay and power.

  • Also, designed to operate from 12VDC or 24VDC car battery

Specifications

  • PCB material                            FR4

  • Relay switch min. rating            110V/10A other values are available

  • Max power consumption            2W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               12 or 24 [VDC]

  • Power source                          12V battery or 12VDC (12V relay board)

  • Relay on  indicator                    LED Green or Red

  • Wires Connections                    Via terminal-block

  • Manufactured                          100% in U.S.A.

Board Dimensions:



Board width, length, height: 2.4" * 2.3" * 0.75"



Pricing



* Prices, P#, SKU# and colors are subject to change without notice.



Description

SKU #

Price

RELAYER-IMC-HL Dual High/Low relay board. with 12V-coils relays, input via TTL signals.

EID-RELAYER-IMCHL-12VRT

$111.96

RELAYER-IMC-HL Dual Dual High/Low relay board. with 12V-coils relays, input via TTL signals. with 6" wires (6).

EID-RELAYER-IMCHLW-12VRT

$109.56

RELAYER-IMC-HLDual Dual High/Low relay board. with 12V-coils relays, input via HVAC signals.

EID-RELAYER-IMCHL-12VRH

$109.56

RELAYER-IMC-HL Dual Dual High/Low relay board. with 12V-coils relays, input via HVAC signals. with 6" wires (6).

EID-RELAYER-IMCHLW-12VRH

$109.56

RELAYER-IMC-HL Dual Dual High/Low relay board. with 12V-coils relays, input via INDUSTRIAL signals.

EID-RELAYER-IMCHL-12VRI

$109.56

RELAYER-IMC-HL Dual Dual High/Low relay board. with 12V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-RELAYER-IMCHLW-12VRI

$109.56

RELAYER-IMC-HL Dual Dual High/Low relay board. with 24V-coils relays, input via TTL signals.

EID-ISO-RELAYER-IMCHL-24VRT

$156.68

RELAYER-IMC-HL Dual Dual High/Low relay board. with 24V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELAYER-IMCHLW-24VRT

$106.68

RELAYER-IMC-HL Dual Dual High/Low relay board. with 24V-coils relays, input via HVAC signals.

EID-ISO-RELAYER-IMCHL-24VRH

$106.68

IRELAYER-IMC-HL Dual opto isolated relay board. with 24V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELAYER-IMCHLW-24VRH

$106.68

RELAYER-IMC-HL Dual High/Low relay board. with 24V-coils relays, input via INDUSTRIAL signals.

EID-RELAYER-IMCHL-24VRI

$99.33

RELAYER-IMC-HL Dual High/Low relay board. with 24V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELAYER-IMCHLW-24VRI

$106.68

  •
