INTERFACER  - AILS. Air-In-Line and switch interface board. Non-contact fluid detection.



The INTERFACER-AILS board is designed to perform two functions 1. To detect and change output voltage as a result of air trapped inside a clear tube. 2. To remove bouncing voltage from mechanical switch to voltage converters. See Fig. C.



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks.



The INTERFACER-AILS is easy to install, setup and operate. If you want to do professional flow measurement, air-bubble free, related functions-- The INTERFACER-AILS offers the features you need. Mounted easily via two 0.125" mounting holes.



Simply connect the board to 5VDC, place the tube inside the Opto-coupler, adjust it via trimmer (P1) to catch air-bubble. See below, Fig. A. The board output voltage will change level and remain at this point until the bubble moves from the Opto-coupler central axis. See Fig. B.



The INTERFACER-AILS unique non-contact fluid interface board and sensor (photodiode) combination is design to detect air bobble in blood, plasma and intravenous fluids or any other applications that require feedback and verification of the presence of liquid and/or air bobble in the liquid flowing throw clear tubing of 0.25” OD or less.



The INTERFACER-AILS board with sensor combination uses the difference in refractive properties between the air-bobble and or unfilled tubing to filled one. On board multi-turn trimmer adjustment, for setting this detection level for optimum preference.

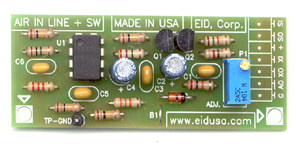

Air In Line board

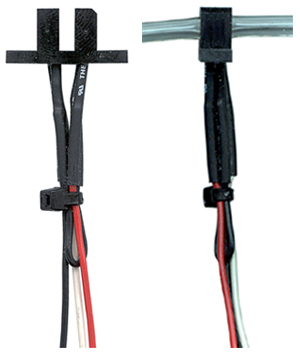

Air In Line infra Red (IR) sensor front and

side (shown with clear pipe) views

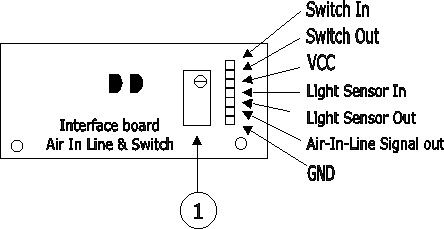

Figure A



1. Air-in-line bubble detection sensitivity via multi-turn trimmer adjustment.

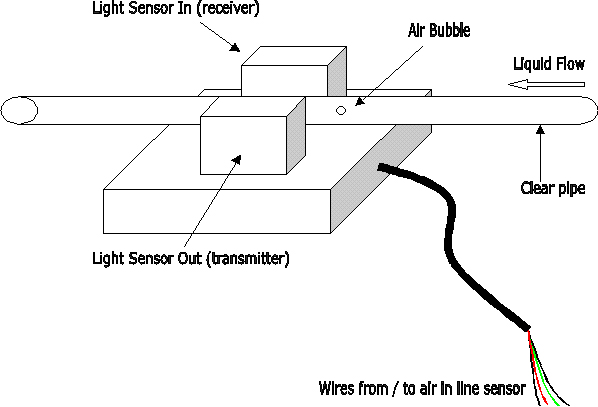

Figure B.



(non-invasive sensor for air bubble detection)

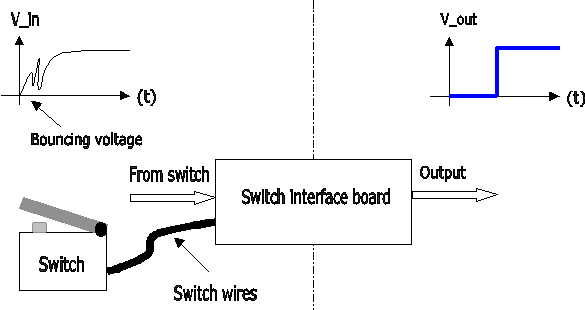

Figure C.

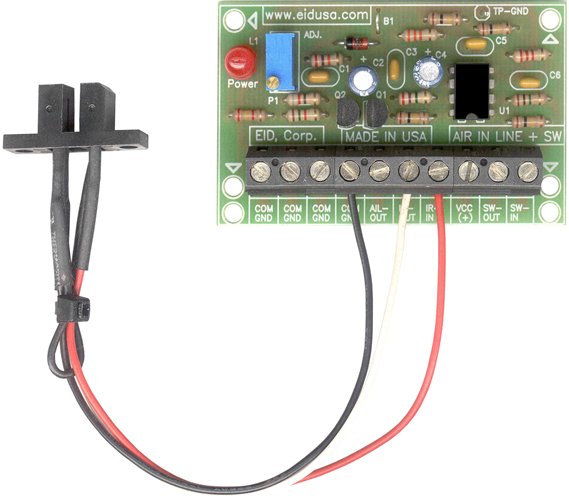

Shown above with a Terminal-block configuration and IR sensor and wires optional






INTERFACER-AILS Features

  • Air in line output multi-turn trimmer adjustment.

  • Power via 5VDC.

  • Converts Air in line (via light) to CMOS or TTL voltage level.

  • Convert switch to voltage CMOS or TTL levels.

  • Can be customized to accommodate your input voltage requirement.

On board trimmer facilitates precise calibration of air detection sensitivity.



Specifications

  • Output voltage                         5V, 0.2V DC

  • PCB material                             FR4

  • Switch Input Filter                     B.P.F. 2Hz-1KHz

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 9 [V]

  • Power source                            5VDC +/-5%,

  • Adjustment                              Via trimmer for air detection sensitivity

  • Mounting                                 Two 0.125” holes

  • Manufacture                            100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

   Additional 10% discount with student ID, USA only.

Description

SKU #

Price

INTERFACER-AILS Air in line detection and switch interface board.

EID-INTERF-CER-AILS

$69.00

INTERFACER-AILS Air in line detection and switch interface board with Terminal Bolcks.

EID-INTERF-CER-AILS-TB

$89.00

Two Teflon 3/4" long mounting spacers and Four 4-40 1/4" screws.

EID-INTERF-CER-SILS-XX34-4-40

$7.99

Two Teflon 1/2" long mounting spacers and Four 4-40 1/4" screws.

EID-INTERF-CER-AILS-XX12-4-40

$6.99

INFRA-RED Sensor

EID-INTERF-CER-AILS-IRS1

$9.21

INFRA-RED Sensor PCB for 1/8" (0.125") spacing

EID-INTERF-CER-AILS-IRS1-125

$5.00

INFRA-RED Sensor PCB for 1/4" (0.25") spacing

EID-INTERF-CER-AILS-IRS1-250

$7.00

  •
