VOSER – V40. Adjustable voltage/current sensitive 40 Amperes rated relay control Board with delay.



The VOSER-V40 board is designed to perform high current relay Lead/Lag control "window" switching function based on three set points.



1. "On" voltage/current set point ("CUT-IN", Relay Engage).



2. "Off" voltage/current set point  ("CUT-OUT", Relay Dis-engage, Relay Un-engage).



3. "On Delay" set point  ("CUT-IN-DELAY").

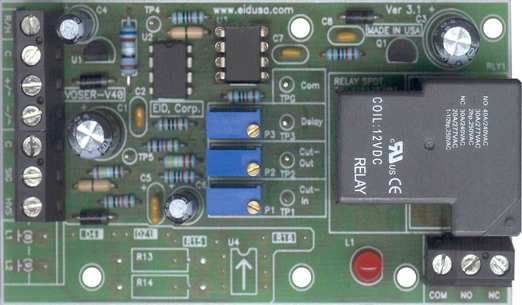

Shown above configured for voltage Input 0-30V DC, with 40A-relay







Shown above configured for voltage Input 0-30V DC, with optional "dual outputs" 40A-relay



The board can accommodate many industrial standards inputs both, voltages and currents configurations:



1. Input current: 4-20mA (or 0-20mA), 0-100mA



2. Input voltage: DC 0-5/10/15/20/30/40/60/150/300V



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks, or pricey PLC.



The VOSER-V40 is easy to install, setup and operate. If you want to do professional up to 40A relay window switching via setting of voltage or current with On-delay, The VOSER-V40 offers the features you need.



As mentioned above, the board can be configured to accept many input signals low voltage and current, as well as High Voltage Signals (HVS).



Mounted easily via two 0.125" mounting holes using 4-40 screws (optional) and wire via convenient conventional industrial standards cage up terminal blocks (TB).



Setting the board is simple Just follow these easy steps



1. Connect the board to 10 to 24V AC or DC. Preferred stable 24V DC (industrial standard).



2. Connect Digital Volt Meter DVM between Test point common ground (TPG, COM) and three test point.

Set three set points on by on as desired. Test (T) point T-On (TP1, "cut-in"), T-Off (TP2, "cut-out") and Delay (TP3, Delay). (or we will pre-set it for you)



3. Connect the signal.



The board remembers the setting points and the relay will turn on (engage) after time delay, and off (dis-engage).



The board is ideal when an analog signal is required to switch two position (thresholds window) loads i.e. circulating pumps, high and low fan speeds, humidifiers, pool chlorine feeding pumps, sensor level switching functions, differential switching controls, analog signal to relay on/off (cut-in/cut-out) threshold window, analog signal voltage, or current alarms and more.



Please drop us a line at HVAC@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--one of our OEM engineers will be happy to help you achieve them.

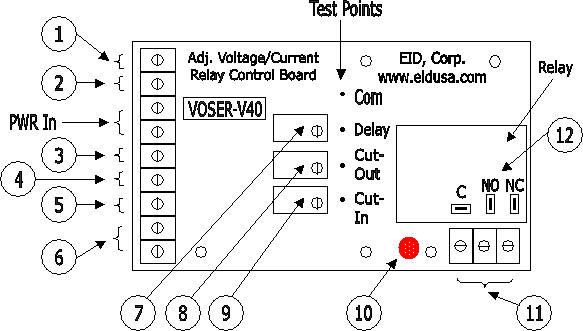

Figure A above shown with maximum configuration and options







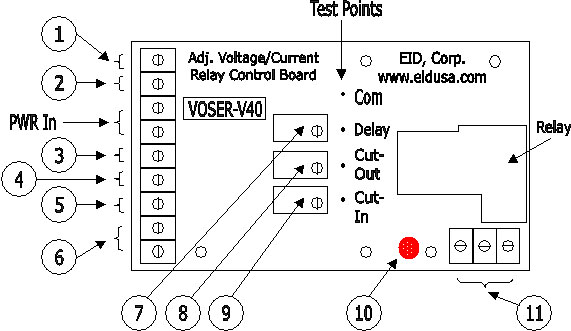

Figure B above shown with with optional "dual outputs" 40A-relay configuration





1. Input Option.

2. Input Common (C).

3. Signal (C) Common

4. S (Signal)

5. HVS (High Voltage Signal).

6. Optional Opto-Coupler isolation Line inputs (L1 and L2)

7. On delay timer (cut-in delay) setting via multi-turn trimmer adjustment.

8. Off (cut-out) corresponding voltage setting via multi-turn trimmer adjustment.

9. On (cut-in) corresponding voltage setting via multi-turn trimmer adjustment.

10. Relay power on indication.

11. C-relay outputs: Relay-common (COM), relay normally open (NO) and relay normally closed (NC).

12. Optional (addition for top connection) C-relay outputs (See Figure B)






Sample configurations







Sample 1.0



Shown above when configured for current signals input, where relay threshold window:

 On (cut-in) set @ 24mA and  off (cut-out) @ 12mA.

Normal operation where I_On > I_Off settings.







Sample 2.0

Shown above when configured for voltage (0-30) signal input, where relay threshold window:

On (cut-in) set @ 10VDC and  off (cut-out) @ 5VDC

Normal operation where V_On > V_Off settings







Sample 3.0

Shown above when configured for voltage (0-30) signal input, where relay threshold window:

On (cut-in) set @ 5VDC and  off (cut-out) @ 10VDC

Auto-Reverse operation where V_off > V_On settings



Note: In all above sample configurations the delay automatically set to 1 second (without delay option) or with delay option of 1-255 second (up to 4 minutes and 15 seconds). If required we can pre-set or change the delay timer as requested.






VOSER-V40 Features



  • On and off (cut-in and cut-out) voltage settings - relay switching points (thresholds window)

  • Relay On delay settings (cut-in delay timer settings)

  • Input voltages or currents

  • Power via 10.5 to 24V DC or AC industrial standards

  • Can be customized to accommodate your input voltages or current window range requirements

  • Relay on LED indicator

Specifications

  • PCB material: FR4

  • Input Signal: many options up to 0-300V, 0-100mA, model dependant

  • Input impedance (non-isolated input): >100K Ohms, model dependant

  • Max power consumption: 0.5W

  • On and Off Set points: 0-5.12V

  • Delay Set points: 0-5.12V

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: < 24 [V]

  • Power source: 10.5 to 24VAC +/-5%, 50/60Hz, 1.5VA

  • Mounting: Two 0.125” holes

  • Manufactured: 100% in U.S.A.

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

VOSER 0-20 mA with 40A relay on/off without delay option

EID-VOSER-CDC-000L-20

$120.00

VOSER 0-20 mA with 40A relay on/off with delay option

EID-VOSER-CDC-XXXL-20

$124.75

VOSER 0-100 mA with 40A relay on/off without delay option

EID-VOSER-CDC-000L-100

$148.00

VOSER 0-100 mA with 40A relay on/off with delay option

EID-VOSER-CDC-XXXL-100

$153.75

VOSER 0-5 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-5

$120.00

VOSER 0-5 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-5

$124.75

VOSER 0-10 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-10

$120.00

VOSER 0-10 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-10

$124.75

VOSER 0-15 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-15

$120.00

VOSER 0-15 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-15

$124.75

VOSER 0-20 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-20

$117.00

VOSER 0-20 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-20

$1120.75

VOSER 0-30 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-30

$126.00

VOSER 0-30 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-30

$120.75

VOSER 0-40 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-40

$126.00

VOSER 0-40 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-40

$132.75

VOSER 0-60 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-60

$120.00

VOSER 0-60 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXS-60

$132.75

VOSER 0-150 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-150

$138.00

VOSER 0-150 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-150

$182.75

VOSER 0-150 V with 40A relay on/off without delay option

EID-VOSER-VDC-000L-300

$192.00

VOSER 0-150 V with 40A relay on/off with delay option

EID-VOSER-VDC-XXXL-300

$213.75

VOSER Options:

VOSER with "dual output" 40A-relay option

EID-VOSER-VDC-TRXL-A40

Add $5.75

VOSER with 1' output wires

EID-VOSER-VDC-TWXL-A40

Add $15.94

VOSER with 1' output and input wires

EID-VOSER-VDC-TRXL-A40

Add $33.00

  •
