CYCLER – XV. Adjustable voltage/current sensitive relay control Board with delay and extra dual delay cycle timer



The CYCLER-2D board is designed to perform relay switching function based on five set points.



1. On voltage/current set point



2. Off voltage/current set point



3. On Delay set point



4. On cycle timer while at on position



5. Off cycle timer while at on poison

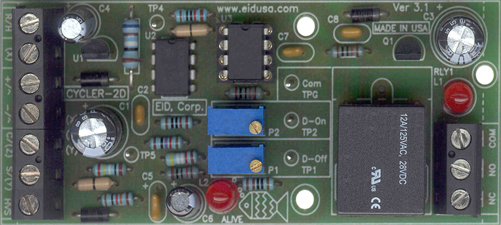

Shown above configured for voltage Input control



The board can accommodate many industrial inputs both, voltages and currents configurations:



1. Input current: 4-20mA (or 0-20mA), 0-100mA



2. Input voltage: DC 0-5/10/15/20/30/40/60/150/300V



If used properly, it will eliminate the need for expensive boards, which would otherwise be needed to carry out the same tasks, or pricey PLC.



The CYCLER-2D is easy to install, setup and operate. If you want to do professional relay switching via setting of voltage or current with On-delay, The CYCLER-2D offers the features you need.



As mentioned above, the board can be configured to accept many input signals low voltage and current, as well as high voltages signals (HVS).



Mounted easily via two 0.125" mounting holes using 4-40 screws (optional) and wire via conveniently industrial standards cage up terminal blocks (TB).



Setting the board is simple Just follow these easy steps



1. Connect the board to 10 to 24V AC or DC



3. Set two set points. (or we will pre-set it for you)



The board remembers the setting points and the relay will turn on and off based on them.



The board is ideal when an analog signal is required to switch two position loads i.e. circulating pumps, recalculating fans, high and low fan speeds, humidifiers, pool chlorine feeding pumps, sensor level switching functions, differential switching controls, analog signal to relay on/off, analog signal voltage or current alarms and more.



Please drop us a line at hvac@eidusa.com and let us know where you use this unique board. Or, of course, if you have any adjustments deemed important--and one of our engineers will be happy to help you achieve them.

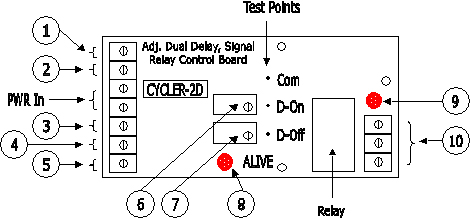

Figure A  above shown with maximum configuration and options





1. TTL controlled Input Option.

2. (X) auxiliary power output +5.12V for Opto-Coupler signal isolation daughter-board.

3. (C) Common, also ground (Z) for Opto-Coupler isolation daughter-board.

4. S (Signal) also input (Y) for Opto-Coupler isolation daughter-board.

5. HVS (High Voltage Signal).

6. On cycle delay timer setting via multi-turn trimmer adjustment.

7. Off cycle delay timer setting via multi-turn trimmer adjustment.

8. Alive indication, blink every half or one second.

9. Relay power on indication.

10. C-relay outputs: Relay-common (COM), relay normally open (NO) and relay normally closed (NC)






CYCLER-2D Features



  • On and off voltage settings - relay switching points

  • Relay On and Off cycle delay settings

  • Input voltage or current

  • Power via 10.5 to 24V DC or AC industrial standards

  • Can be customized to accommodate your input voltage or current requirements

  • Relay on LED indicator

Specifications

  • PCB material: FR4

  • Input Signal: many options up to 0-300V, 0-100mA, model depended

  • Input impedance (non-isolated input): >100K Ohms

  • Max power consumption: 0.5W

  • On and Off Set points: 0-5.12V

  • Delay Set points: 0-5.12V

  • Storage temperature: 40 - 70   [F]

  • Operating temperature: 32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage: < 24 [V]

  • Power source: 10.5 to 24VAC +/-5%, 50/60Hz, 1.5VA

  • Mounting: Two 0.125” holes

  • Manufactured: 100% in U.S.A.

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

CYCLER 0-20 mA relay on/off with dual cycle timers

EID-CYCLER-CDC-XXXS-20

$129.75

CYCLER 0-100 mA relay on/off with dual cycle timers

EID-CYCLER-CDC-XXXS-100

$147.75

CYCLER 0-5 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-5

$129.96

CYCLER 0-10 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-10

$129.75

CYCLER 0-15 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-15

$129.75

CYCLER 0-20 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXX-20

$129.72

CYCLER 0-30 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-30

$138.75

CYCLER 0-40 V relay on/off with dual cycle timers

EID-CYCLER-VDC-000S-40

$126.33

CYCLER 0-60 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-60

$138.75

CYCLER 0-150 V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-150

$150.72

CYCLER 0-300V relay on/off with dual cycle timers

EID-CYCLER-VDC-XXXS-300

$181.75

  •
