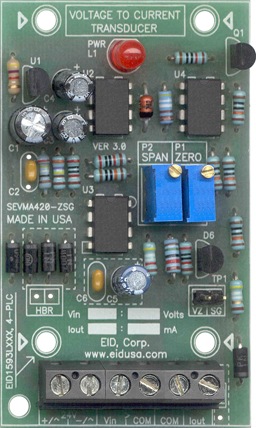

OEM TRANSDUCER–SEVMA420-ZSG - Single Ended Voltage (SEV) to current (C) industrial supper  transducer (converter) transmitter. With Zero and Span adjustments.



This board offers effective, state-of-the-art, reliable linear control of HVAC's 4-20mA dampers and valves. Commonly utilized as the heart of 420 In-Line Amplifier 420ILA.



The TRANSDUCER-SEVMA420-ZSG voltage to current converter is a signal control (Proportional) 4-20 mA voltage to current super transducer board for HVAC (Heating, Ventilation and Air Conditioning), electro-hydraulic and servo electronics; actuator, dampers, bleed pilot valve, globe valves, butterfly valves, plug valves, dampers and more.



The TRANSDUCER-SEVMA420-ZSG board is designed to perform voltage to current conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



The TRANSDUCER-SEVMA420-ZSG  is easy to install, setup, and operate. If you want to do professional remote voltage measurement related functions, The TRANSDUCER-SEVMA420-ZSG offers the features you need. It can be mounted easily via four 0.125" mounting holes using 4-40 screws.



Simply connect the board to 24VDC or 24VAC connect your voltage source 0-10V to the input and our board will convert it to 4-20mA.





The TRANSDUCER – SEVMA420-ZSG transducer board is an accurate, linear, and an efficient way to convert industrial standards voltage (input DC voltage models) 0 to 10V, 0 to 1V, 0 to 2V, 0 to 2.5V, 0 to 3V, 0 to 4.096V, 0-5V, 0 to 10V, 0-15V, 0 to 20V, 0-24V, 0 to 30V into industrial standards (output current float on 16-20V DC) current 4 to 20mA signals.... See below table "voltage to current industrial standard configuration models".



Note: Using industrial standard 249 Ohms 1% resistor on the meter side (deferential input preferred) will produce 1 to 5V for 4 to 20mA. Using 499 Ohms 1% on the remote side will produce 2 to 10V. Or use our 4-20mA current to differential input voltage transducer to convert it to you desire voltage ranges. See links: Current to Voltage Converter and Current to Voltage Transducer.












precision Voltage-to-Current Super Transducer/Transmitter

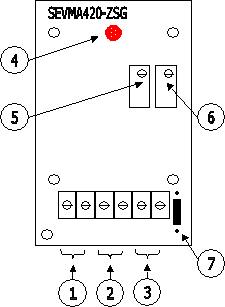

1. Input voltage.

    Note: Available in many input voltage configuration ranges (0 - 1V, 2V, 2.5, 3, 4.096, 5V, 10V, 15V, 24V...).

2. Power 24V DC or  AC

3. Output current 4-20mA.

4. LED power indicator.

5. 10V - input 20mA output multi-turn trimmer Span adjustment.

6. 0V - input 4mA output multi-turn trimmer Zero adjustment.

7. Place for load resistor (RLD).

    Note: When RLD = 250 Ohms (249 Ohms 1% resistor standard), the output will change to voltage of 1-5V DC.

   For maximum accuracy use our 4-20mA current to differential input voltage transducer/converter to convert

    it to you desire voltage ranges. See links: Current to Voltage Converter and Current to Voltage Transducer.




The Voltage to Current Supper Transducer the TRANSDUCER–SEVMA420-ZSG is a single channel, low cost, precision, 4mA to 20mA current output driver districted hardware module. It targets many applications in PLC and industrial process control. Model dependent (see table below), the analog input to the board is provided from both, low or high analog voltage signals.



Voltage to current (4-20 mA) industrial standard configuration models:



Model #

Input Voltage

Output Current

EID's OEM P#

VC420-G1

0-1V

4-20mA

EID-CONVER-TER-VC420-G1-6TB









VC420-G2

0-2V

4-20mA

EID-CONVER-TER-VC420-G2-6TB









VC420-G2X5

0-2.5V

4-20mA

EID-CONVER-TER-VC420-G2X5-6TB









VC420-G3

0-3V

4-20mA

EID-CONVER-TER-VC420-G3-6TB









VC420-G4X0496

0-4.096V

4-20mA

EID-CONVER-TER-VC420-G4X096-6TB









VC420-G5

0-5V

4-20mA

EID-CONVER-TER-VC420-G5-6TB









VC420-G10

0-10V

4-20mA

EID-CONVER-TER-VC420-G10-6TB









VC420-G15

0-15V

4-20mA

EID-CONVER-TER-VC420-G15-6TB









VC420-G24

0-24V

4-20mA

EID-CONVER-TER-VC420-G24-6TB









VC420-G30

0-30V

4-20mA

EID-CONVER-TER-VC420-G30-6TB




Mounting Option



Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications

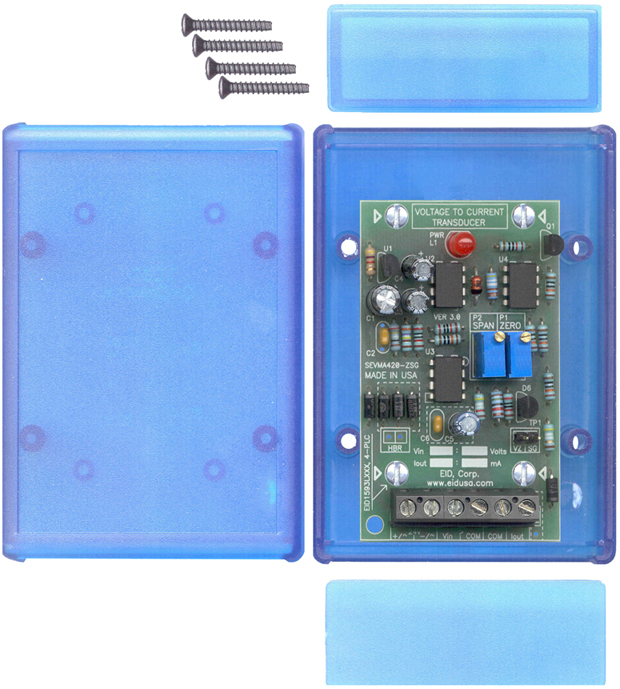

EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side view





The board shown above mounted in EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).




TRANSDUCER-SEVMA420-ZSG Features



  • Built-in power LED indicator.

  • 10V input 20mA output multi-turn trimmer both Zero and Span adjustments.

  • Power via 24V DC or AC industrial standard.

  • Converts 0-10VDC analog Voltages to 4-20mA or

  • Can be customized to accommodate your input voltage requirement.

  • Industrial Standard output of 4-20mA makes the TRANSDUCER ideal for remote sensing applications.

  • Linear current output.

  • Current output rated up to 600mA.

  • On board trimmer facilitates precise Zero calibration of output current (0V input to 4mA output)

  • On board trimmer facilitates precise Span calibration of output current (10V input to 20mA output)

Specifications

  • Input voltage                            0-30VDC, Model depended!

  • Input Impedance                       >10K Ohms, Model depended!

  • Output voltage                         Industrial standard 12-18VDC for driving long distance wires

  • Output Current                         standard, calibrated for 4-20mA with a 0 – 10VDC input signal

  • PCB material                             FR4

  • Input Filter                               L.P.F. 2Hz

  • Max power consumption              0.5W

  • Maximum load:                          Max load 600 Ohms

  • Storage temperature                  40 - 70   [F]

  • Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                 9 [V]

  • Power source                            24VAC +/-12%, 50/60Hz, 0.6VA or 24VDC @ 45mA filtered

  • Power indicator                          LED Red

  • Adjustment                               Via trimmer for 20mA output @ 10VDC input and  4mA @ 0V

  • Mounting                                  Four 0.125” (3.1mm) holes with centers distance of 1.1" & 2.1"

  • Board dimensions                       1.750" & 2.825" (44.4mm * 71.8mm)

  • Manufactured                           100% in USA

Pricing



* Prices, SKU#, P# and colors are subject to change without notice.

Description

SKU #

Price

TRANSDUCER-SEVMA420-ZSG voltage (0V to 1V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G1-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 2V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G2-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 2.5V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G2X2-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 3V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G3-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 4.096V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G4X049-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 5V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G5-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 10V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G10-6TB

$201.93

TRANSDUCER-SEVMA420-ZSG voltage (0V to 15V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G15-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 24V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G24-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG voltage (0V to 30V) to current (4mA to 20mA) super transducer (converter) with terminal-block (6 positions).

EID-CONVER-TER-VC420-G30-6TB

$212.43

TRANSDUCER-SEVMA420-ZSG EID-1593LTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options

EID-CONVER-TER-VC420-D-BLU

$14.99

Modified Translucent blue ABS Plastic Instrument enclosures option

EID-1593LTBU

$15.75

Modified black ABS Plastic Instrument enclosures option

EID-1593LBK

$12.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.24

Remote load resistor 249 Ohms .25W, 1%

EID-R-025-249-1

$1.2

Remote load resistor 249 Ohms .50W, 1%

EID-R-050-249-1

$2.1

  •
