Ice Blue, IR Red & Crystal Clear Translucent Polycarbonate Enclosures Enclosures (1591 "T" Series)



Click Here To Enlarge (156K)

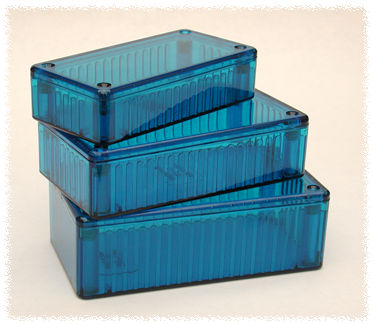

Ice Blue



Click Here To Enlarge (156K)

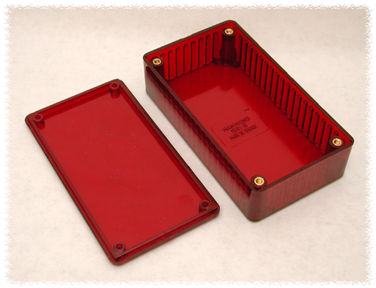

IR Red

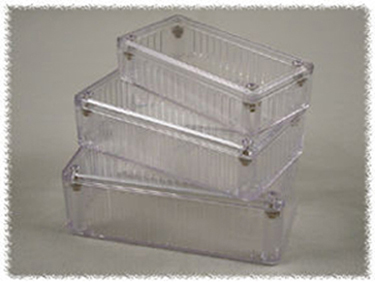

Crystal Clear



Features and benefits:

  • Ideally suited for mounting printed circuit boards.

  • Perfect for applications where parts, sensors or indicators need to be visible.

  • Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays.

  • IR Red version is almost totally transparent to infrared devices.

  • Crystal Clear version is almost totally transparent.

  • Integral card guides accept 1.5 mm (0.062”) P.C. cards.

  • Lap joint construction provides protection against access of dust and splashing water.

  • Designed to meet IP54.

  • Molded from flame retardant, translucent polycarbonate (material carries a UL flammability rating of 94V-0).

  • Lid is secured with M3 x 10 mm Philips machine screws, threaded into integral brass bushings.



Part Number

Color

1-9

10-49

50-99

100-1K

Units

Length

Width

Enclosure Depth (Less Lid)

EID-1591ATBU
EID-1591ATRD

EID-1591ATCL

Ice Blue
IR Red

Clear



Inches

3.9

2.0

0.8

mm

100

50

21

EID-1591BTBU
EID-1591BTRD

EID-1591BTCL

Ice Blue
IR Red

Clear



Inches

4.4

2.4

1.1

mm

112

62

27

EID-1591CTBU
EID-1591CTRD

EID-1591CTCL

Ice Blue
IR Red

Clear



Inches

4.7

2.6

1.4

mm

120

65

36

EID-1591DTBU
EID-1591DTRD

EID-1591DTCL

Ice Blue
IR Red

Clear



Inches

5.9

3.2

1.8

mm

150

80

46

EID-1591ETBU
EID-1591ETRD

EID-1591ETCL

Ice Blue
IR Red

Clear



Inches

7.5

4.3

2.2

mm

191

110

57



Notes:

  • All Dimensions in inches & mm

  • Add 0.16" (4 mm) to enclosure depth for lid

Translucent Features

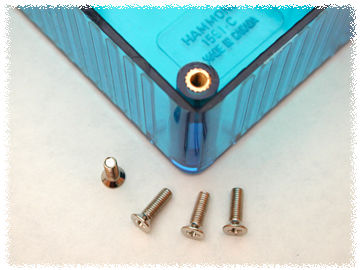

Includes integral threaded brass inserts and machine screws providing extra strength for repeated assembly and disassembly of lid.

Includes Brass Inserts!



  •
